RDKit ligand

Setup

source

contain_acrylamide


def contain_acrylamide(
    smiles, ACRYLAMIDE_SMARTS:str='C=CC(=O)N', # SMARTS pattern for acrylamide
):

Check if the SMILES contain acrylamide (can form covalent bond with cysteine in protein)

# df['covalent'] = df.SMILES.apply(contain_acrylamide)

source

plot_drug


def plot_drug(
    drug_dict, flip_list:NoneType=None, save_path:NoneType=None
):

drug_smiles = {
    "Capmatinib": "CNC(=O)C1=C(C=C(C=C1)C2=NN3C(=CN=C3N=C2)CC4=CC5=C(C=C4)N=CC=C5)F",
    "Tepotinib": "CN1CCC(CC1)COC2=CN=C(N=C2)C3=CC=CC(=C3)CN4C(=O)C=CC(=N4)C5=CC=CC(=C5)C#N",}

flip_list = ['Tepotinib'] # indicate keys to flip horizontally
plot_drug(drug_smiles,
          flip_list=flip_list,
        #   save_path='drug_structures.svg'
          )

Conformer

source

rdkit_conformer


def rdkit_conformer(
    SMILES, # SMILES string
    output:NoneType=None, # file ".sdf" to be saved
    method:str='ETKDG', # Optimization method, can be 'UFF', 'MMFF' or 'ETKDGv3'
    visualize:bool=True, # whether or not to visualize the compound
    seed:int=3, # randomness of the 3D conformation
):

Gemerate 3D conformers from SMILES

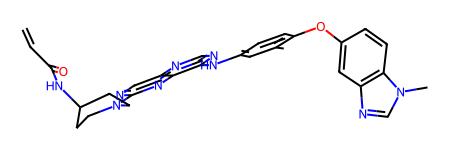

rdkit_conformer('CC1=C(C=CC(=C1)NC2=NC=NC3=CN=C(N=C32)N4CCC(CC4)NC(=O)C=C)OC5=CC6=C(C=C5)N(C=N6)C')

source

tanimoto


def tanimoto(
    df, # df with SMILES and ID columns
    smiles_col:str='SMILES', # colname of SMILES
    id_col:str='ID', # colname of compound ID
    target_col:NoneType=None, # colname of compound values (e.g., IC50)
    radius:int=2, # radius of the Morgan fingerprint.
):

Calculates the Tanimoto similarity scores between all pairs of molecules in a pandas DataFrame.

df = Kras.get_mirati_g12d_raw()[['ID','SMILES','IC50']]
df = df.dropna(subset= 'IC50').reset_index(drop=True)
df
ID SMILES IC50
0 US_1 CN1CCC[C@H]1COc1nc(N2CC3CCC(C2)N3)c2cnc(cc2n1)... 124.7
1 US_2 CN1CCC[C@H]1COc1nc(N2CC3CCC(C2)N3)c2cnc(c(F)c2... 2.7
... ... ... ...
703 paper_37 FC1=C(C2=C(C(Cl)=CC=C3)C3=CC(O)=C2)N=CC4=C1N=C... 2.0
704 paper_38 FC1=C(C2=C(C(C#C)=CC=C3)C3=CC(O)=C2)N=CC4=C1N=... 2.0

705 rows × 3 columns

result = tanimoto(df.head(), target_col = 'IC50')
result
ID1 ID2 SMILES1 SMILES2 SimilarityScore Target1 Target2
0 US_3 US_4 Cn1ccnc1CCOc1nc(N2CC3CCC(C2)N3)c2cnc(c(F)c2n1)... Oc1cc(-c2ncc3c(nc(OCCc4ccccn4)nc3c2F)N2CC3CCC(... 0.779221 9.5 496.2
1 US_1 US_2 CN1CCC[C@H]1COc1nc(N2CC3CCC(C2)N3)c2cnc(cc2n1)... CN1CCC[C@H]1COc1nc(N2CC3CCC(C2)N3)c2cnc(c(F)c2... 0.743590 124.7 2.7
... ... ... ... ... ... ... ...
8 US_1 US_3 CN1CCC[C@H]1COc1nc(N2CC3CCC(C2)N3)c2cnc(cc2n1)... Cn1ccnc1CCOc1nc(N2CC3CCC(C2)N3)c2cnc(c(F)c2n1)... 0.505495 124.7 9.5
9 US_1 US_4 CN1CCC[C@H]1COc1nc(N2CC3CCC(C2)N3)c2cnc(cc2n1)... Oc1cc(-c2ncc3c(nc(OCCc4ccccn4)nc3c2F)N2CC3CCC(... 0.488889 124.7 496.2

10 rows × 7 columns

Rdkit feature

source

get_rdkit


def get_rdkit(
    SMILES:str
):

Extract chemical features from SMILES Reference: https://greglandrum.github.io/rdkit-blog/posts/2022-12-23-descriptor-tutorial.html

source

get_rdkit_3d


def get_rdkit_3d(
    SMILES:str
):

Extract 3d features from SMILES

source

get_rdkit_all


def get_rdkit_all(
    SMILES:str
):

Extract chemical features and 3d features from SMILES

source

remove_hi_corr


def remove_hi_corr(
    df:DataFrame, thr:float=0.99, # threshold
):

Remove highly correlated features in a dataframe given a pearson threshold

source

preprocess


def preprocess(
    df:DataFrame, thr:float=0.99
):

Remove features with no variance, and highly correlated features based on threshold.

source

get_rdkit_df


def get_rdkit_df(
    df:DataFrame, include_3d:bool=False, col:str='SMILES', postprocess:bool=False,
    chunksize:int=128, # for parallel process_map
):

Extract rdkit features (optionally in parallel with 3D) from SMILES in a df

df=Collins.get_antibiotics_2k().head(300)
df.head()
name SMILES inhibition activity
0 CEFPIRAMIDE Cc1cc(O)c(C(=O)NC(C(=O)NC2C(=O)N3C(C(=O)O)=C(C... 0.041572 1
1 GEMIFLOXACIN MESYLATE CON=C1CN(c2nc3c(cc2F)c(=O)c(C(=O)O)cn3C2CC2)CC... 0.041876 1
2 POLYMYXIN B SULFATE CCC(C)CCCCC(=O)NC(CCN)C(=O)NC(C(=O)NC(CCN)C(=O... 0.041916 1
3 PRAXADINE HYDROCHLORIDE Cl.N=C(N)n1cccn1 0.041964 1
4 CHLORHEXIDINE DIHYDROCHLORIDE Cl.Cl.N=C(NCCCCCCNC(=N)NC(=N)Nc1ccc(Cl)cc1)NC(... 0.042295 1
# %%time
# feat_raw=get_rdkit_df(df)
# feat_raw
CPU times: user 46.6 ms, sys: 65.7 ms, total: 112 ms
Wall time: 2.63 s
MaxAbsEStateIndex MaxEStateIndex MinAbsEStateIndex MinEStateIndex qed SPS MolWt HeavyAtomMolWt ExactMolWt NumValenceElectrons NumRadicalElectrons MaxPartialCharge MinPartialCharge MaxAbsPartialCharge MinAbsPartialCharge FpDensityMorgan1 FpDensityMorgan2 FpDensityMorgan3 BCUT2D_MWHI BCUT2D_MWLOW BCUT2D_CHGHI BCUT2D_CHGLO BCUT2D_LOGPHI BCUT2D_LOGPLOW BCUT2D_MRHI BCUT2D_MRLOW AvgIpc BalabanJ BertzCT Chi0 Chi0n Chi0v Chi1 Chi1n Chi1v Chi2n Chi2v Chi3n Chi3v Chi4n Chi4v HallKierAlpha Ipc Kappa1 Kappa2 Kappa3 LabuteASA PEOE_VSA1 PEOE_VSA10 PEOE_VSA11 ... fr_benzodiazepine fr_bicyclic fr_diazo fr_dihydropyridine fr_epoxide fr_ester fr_ether fr_furan fr_guanido fr_halogen fr_hdrzine fr_hdrzone fr_imidazole fr_imide fr_isocyan fr_isothiocyan fr_ketone fr_ketone_Topliss fr_lactam fr_lactone fr_methoxy fr_morpholine fr_nitrile fr_nitro fr_nitro_arom fr_nitro_arom_nonortho fr_nitroso fr_oxazole fr_oxime fr_para_hydroxylation fr_phenol fr_phenol_noOrthoHbond fr_phos_acid fr_phos_ester fr_piperdine fr_piperzine fr_priamide fr_prisulfonamd fr_pyridine fr_quatN fr_sulfide fr_sulfonamd fr_sulfone fr_term_acetylene fr_tetrazole fr_thiazole fr_thiocyan fr_thiophene fr_unbrch_alkane fr_urea
0 13.503995 13.503995 0.064423 -1.323430 0.162954 18.619048 612.650 588.458 612.120937 218 0 0.352159 -0.507967 0.507967 0.352159 1.214286 1.952381 2.595238 32.167943 10.004034 2.541608 -2.492828 2.413335 -2.707792 8.005500 -0.150504 3.369454 1.339505e+00 1610.181663 30.128663 22.084778 23.717771 20.044622 12.357347 14.391701 9.367961 11.415452 6.531851 8.968356 4.422333 6.757255 -4.64 2.012862e+09 28.873109 11.690583 5.597490 245.926226 25.953159 34.653617 0.000000 ... 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 1 0 2 0 0 0 1 0 0 0 0 0
1 14.874521 14.874521 0.033885 -3.666667 0.398220 19.484848 485.494 461.302 485.138047 180 0 0.340725 -0.477497 0.477497 0.340725 1.424242 2.060606 2.575758 32.239615 10.092419 2.328029 -2.190189 2.370431 -2.256089 7.845502 0.069447 3.471950 5.549999e-07 1265.508949 24.499271 17.933021 18.749518 15.439091 9.902198 11.750510 7.791830 9.257870 5.167537 5.167537 3.595955 3.595955 -3.10 1.783676e+07 24.540619 9.407810 5.638555 187.744947 25.144793 18.320426 11.635084 ... 0 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 2 0 0 0 0 0 0 0 0 0 0 0
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
298 11.161773 11.161773 0.278802 -0.471329 0.463380 10.423077 354.358 336.214 354.110338 134 0 0.307526 -0.426733 0.426733 0.307526 0.615385 1.038462 1.500000 16.546477 10.114910 2.058887 -2.069790 2.248839 -2.041320 5.751292 -0.132566 2.519358 2.225734e+00 814.855170 19.104084 14.645642 14.645642 12.312571 7.801219 7.801219 5.421051 5.421051 3.035442 3.035442 2.145140 2.145140 -3.41 4.201281e+05 18.921939 8.617804 6.238343 150.543633 14.210589 17.248535 0.000000 ... 0 0 0 0 0 3 3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
299 6.134942 6.134942 0.000000 0.000000 0.709648 16.421053 412.597 391.429 409.976001 108 0 0.050449 -0.397550 0.397550 0.050449 1.210526 1.842105 2.473684 79.919764 9.939734 2.186581 -2.311907 2.301302 -2.326367 9.108394 0.184585 2.360656 1.804999e-06 420.152146 13.120956 11.163433 15.151922 8.575387 6.513030 8.099027 5.167360 6.937372 3.797772 4.911697 2.688476 4.002186 0.23 1.225652e+04 17.282002 7.866121 4.622779 138.333022 5.733667 0.000000 0.000000 ... 0 0 0 0 0 0 0 0 0 3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

300 rows × 210 columns

# feat = get_rdkit_df(df,postprocess=True)
# feat

Morgan fingerprints (ECFP)

Reference:

source

get_fp


def get_fp(
    SMILES, name:str='ecfp', ELEMENTS_PER_WORKER:int=1000000
):

Super fast method to get molecule fingerprints using scikit-fingerprints

# %%time
# fp = get_fp(df.SMILES, name='ecfp')
# fp
0it [00:00, ?it/s]
CPU times: user 21.2 ms, sys: 78 ms, total: 99.2 ms
Wall time: 2.07 s
array([[0, 1, 1, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 1, 0, ..., 0, 0, 0],
       ...,
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 1, ..., 0, 0, 0]], dtype=uint8)

Use np.packbits to save space

Save space when dealing with super big dataset

Packbits will transform binary to decimals, if it is [1, 0, 1, 1, 0, 0, 0, 0, 1, 1], then it will take 8 bits in the sequence, [10110000] and [11000000], for the latter, if not enough for 8 bits length, it will add 0.

To transform binary to decimals, take [10110000] for example, calculate through 12^7 + 02^6 + 12^5 + 12^4 + 02^3 + 02^2 + 02^1 + 02^0=176

source

compress_fp


def compress_fp(
    array
):

Compress binary finterprints using np.packbits

# compress_fp(fp)
array([[100,   0,   0, ...,  16,   0,   0],
       [  0, 128,   0, ...,   0,   0,   0],
       [ 64,   0,   0, ...,   0,  16,   0],
       ...,
       [  0, 128,   0, ...,   0,   0,   0],
       [  0,   0,   0, ...,   0,  64,   0],
       [ 32,   0,   0, ...,   0,   0,   0]], dtype=uint8)

Tanimoto

Reference: https://www.kaggle.com/code/towardsentropy/fingerprint-tips-and-tricks/notebook

Slow version:

Method 1

from scipy.spatial import distance
# %%time
# tanimotos_scipy = 1-distance.cdist(fp, fp, metric='jaccard')
# # 30.4s

A little faster with parallel

from sklearn.metrics import pairwise_distances
# %%time
# tanimotos_sklearn = 1 - pairwise_distances(fp, metric='jaccard', n_jobs=-1)
# # 13.1s

Method 2

from rdkit.Chem import DataStructs
# %%time
# tanimotos_rdkit = np.array([DataStructs.BulkTanimotoSimilarity(i, fp) for i in fp])

Method 3

def tanimoto_bitwise(fps_np):
    intersection = (fps_np[:,None] & fps_np[None]).sum(-1)
    union = (fps_np[:,None] | fps_np[None]).sum(-1)
    return intersection / union
# tanimoto_bitwise(fp)

Numba tanimoto

source

tanimoto_numba


def tanimoto_numba(
    fps
):

Get a NxN matrix of tanimoto similarity among N compounds.

# %%time
# tanimoto_numba(fp)
CPU times: user 2.02 s, sys: 319 ms, total: 2.34 s
Wall time: 2.4 s
array([[1.        , 0.11695907, 0.12676056, ..., 0.04918033, 0.06617647,
        0.06206897],
       [0.11695907, 1.        , 0.13020833, ..., 0.09375   , 0.0990991 ,
        0.09166667],
       [0.12676056, 0.13020833, 1.        , ..., 0.06206897, 0.05555556,
        0.07142857],
       ...,
       [0.04918033, 0.09375   , 0.06206897, ..., 1.        , 0.03508772,
        0.0625    ],
       [0.06617647, 0.0990991 , 0.05555556, ..., 0.03508772, 1.        ,
        0.0625    ],
       [0.06206897, 0.09166667, 0.07142857, ..., 0.0625    , 0.0625    ,
        1.        ]], dtype=float32)

Group same compounds

Utilize hash sha256 to encode morgan fp and find same molecule

source

hash_fp


def hash_fp(
    fp_row
):

Hash a binary fingerprint row using SHA256

# hash_fp(fp[0])
'8deb65ba1323d46ca59ebf1206a497761ed2b83a518aa7227a965d5426e25aea'

source

get_same_mol_group


def get_same_mol_group(
    df, smi_col:str='SMILES'
):

Assign a group number to the same compounds by utilizing hash sha256 to encode morgan fp and find same molecule.

# %%time
# df2 = get_same_mol_group(df)
# df2.group.value_counts()
0it [00:00, ?it/s]
CPU times: user 26.4 ms, sys: 124 ms, total: 151 ms
Wall time: 237 ms
group
0      1
206    1
      ..
96     1
299    1
Name: count, Length: 300, dtype: int64

End
