Kmeans motifs

Kmeans

Data

from sklearn.cluster import KMeans
import matplotlib.pyplot as plt
from tqdm import tqdm
from katlas.core import *
import pandas as pd, numpy as np,seaborn as sns

# human = pd.read_parquet('raw/human_phosphoproteome.parquet')
# df_grouped = pd.read_parquet('raw/combine_source_grouped.parquet')
human = Data.get_human_site()
df_grouped = Data.get_ks_dataset()

all_site = pd.concat([human,df_grouped])

all_site.sub_site.isna().sum()

np.int64(0)

all_site = all_site.drop_duplicates('sub_site')

all_site.shape

(131843, 22)

# all_site = all_site[['sub_site','site_seq']].drop_duplicates('sub_site')

One-hot encode

from katlas.feature import *

onehot = onehot_encode_df(all_site,'site_seq')

CPU times: user 2.77 s, sys: 1.05 s, total: 3.82 s
Wall time: 3.65 s

onehot.head()

	-20A	-20C	-20D	-20E	-20F	-20G	-20H	-20I	-20K	-20L	...	20R	20S	20T	20V	20W	20Y	20_	20s	20t	20y
0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	...	1.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
1	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	...	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
2	0.0	0.0	0.0	1.0	0.0	0.0	0.0	0.0	0.0	0.0	...	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
3	0.0	0.0	0.0	1.0	0.0	0.0	0.0	0.0	0.0	0.0	...	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
4	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	...	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0

5 rows × 967 columns

Elbow method

all_site.shape

(131843, 19)

sns.set(rc={"figure.dpi":300, 'savefig.dpi':300})
sns.set_context('notebook')
sns.set_style("ticks")

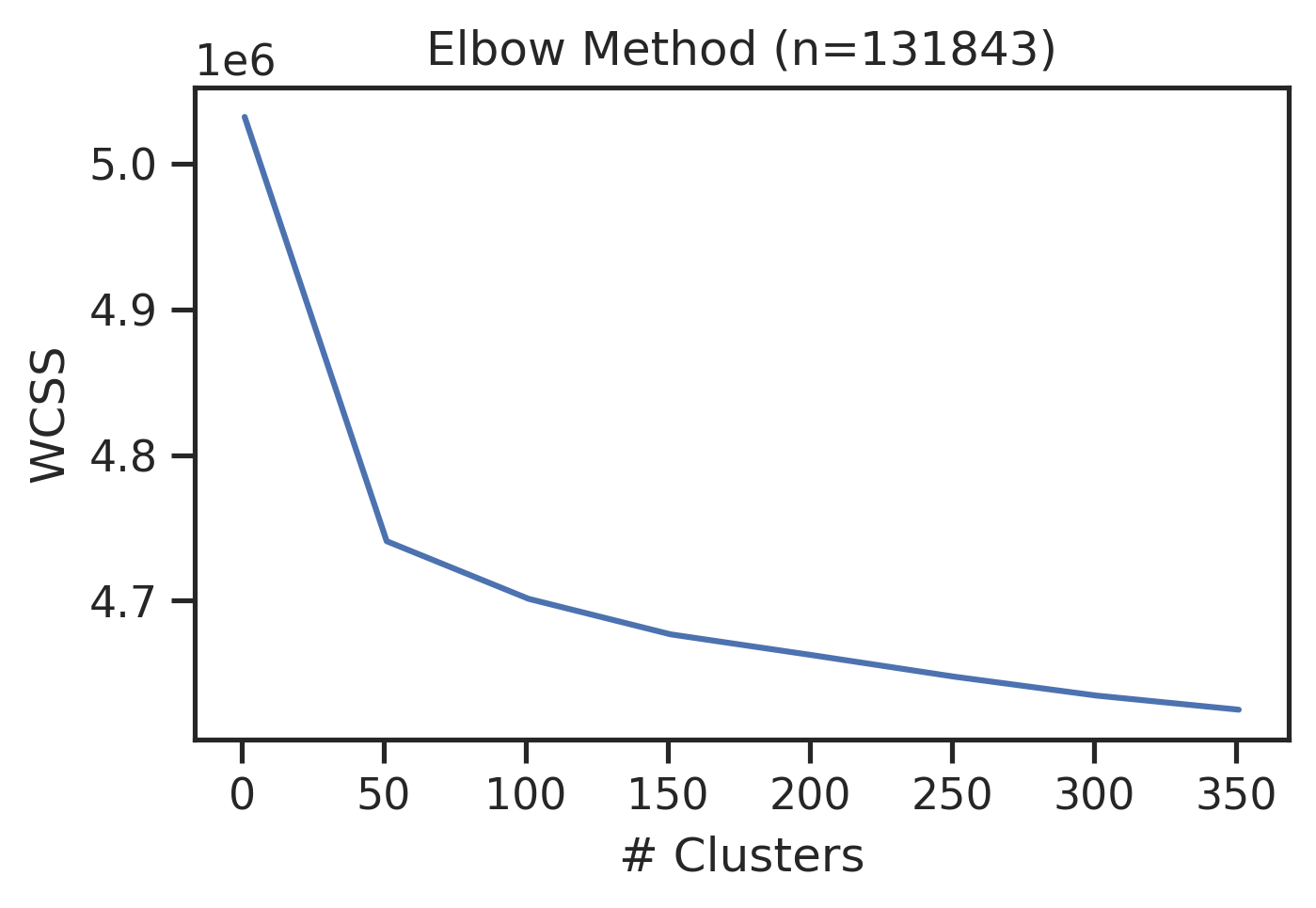

get_clusters_elbow(onehot)

CPU times: user 23min 20s, sys: 46.3 s, total: 24min 6s
Wall time: 9min 50s

Kmeans

If using RAPIDS

# # pip install --extra-index-url=https://pypi.nvidia.com \"cudf-cu12==25.2.*\" \"cuml-cu12==25.2.*\"

# %load_ext cudf.pandas

# import numpy as np, pandas as pd
# from cuml import KMeans
# import matplotlib.pyplot as plt
# import seaborn as sns
# from tqdm import tqdm
# from katlas.core import *
# from katlas.plot import *

def kmeans(onehot,n=2,seed=42):
    kmeans = KMeans(n_clusters=n, random_state=seed,n_init='auto')
    return kmeans.fit_predict(onehot)

ncluster=[50,150,300]
seeds=[42,2025,28]

all_site['test_id']=1

get_cluster_pssms(all_site,'test_id')

100%|██████████████████████████████████████████████████████████████████████████████████████████████| 1/1 [00:02<00:00,  2.04s/it]

	-20P	-20G	-20A	-20C	-20S	-20T	-20V	-20I	-20L	-20M	...	20H	20K	20R	20Q	20N	20D	20E	20pS	20pT	20pY
1	0.079841	0.066693	0.07291	0.013331	0.064879	0.040649	0.050503	0.034598	0.081195	0.01958	...	0.021924	0.067816	0.063392	0.047306	0.033401	0.052386	0.079796	0.041843	0.013849	0.00508

1 rows × 943 columns

pssms=[]
for seed in seeds:
    print('seed',seed)
    for n in ncluster:
        colname = f'cluster{n}_seed{seed}'
        print(colname)
        all_site[colname] = kmeans(onehot,n=n,seed=seed)
        pssm_df = get_cluster_pssms(all_site,colname,count_thr=40) # count threshold 40, no threshold for non-nan
        pssm_df.index =colname+'_'+pssm_df.index.astype(str)
        pssms.append(pssm_df)

seed 42
cluster50_seed42

100%|████████████████████████████████████████████████████████████████████████████████████████████| 50/50 [00:02<00:00, 17.56it/s]

cluster150_seed42

100%|██████████████████████████████████████████████████████████████████████████████████████████| 150/150 [00:04<00:00, 33.82it/s]

cluster300_seed42

100%|██████████████████████████████████████████████████████████████████████████████████████████| 300/300 [00:06<00:00, 44.38it/s]

seed 2025
cluster50_seed2025

100%|████████████████████████████████████████████████████████████████████████████████████████████| 50/50 [00:03<00:00, 14.55it/s]

cluster150_seed2025

100%|██████████████████████████████████████████████████████████████████████████████████████████| 150/150 [00:05<00:00, 25.90it/s]

cluster300_seed2025

100%|██████████████████████████████████████████████████████████████████████████████████████████| 300/300 [00:06<00:00, 43.78it/s]

seed 28
cluster50_seed28

100%|████████████████████████████████████████████████████████████████████████████████████████████| 50/50 [00:02<00:00, 17.59it/s]

cluster150_seed28

100%|██████████████████████████████████████████████████████████████████████████████████████████| 150/150 [00:05<00:00, 28.48it/s]

cluster300_seed28

100%|██████████████████████████████████████████████████████████████████████████████████████████| 300/300 [00:06<00:00, 43.73it/s]

pssms = pd.concat(pssms,axis=0)

Save:

# pssms.to_parquet('raw/kmeans.parquet')
# all_site.to_parquet('raw/kmeans_site.parquet',index=False)

import pandas as pd
from katlas.pssm import *
from functools import partial

pssms = pd.read_parquet('raw/kmeans.parquet')

all_site=pd.read_parquet('raw/kmeans_site.parquet')

def get_surrounding_max(r):
    return float(recover_pssm(r).drop(columns=[0]).max().max())

# def get_surrounding_IC(r):
#     return max(get_IC_per_position_flat(r,exclude_zero=True))

# ICs = pssms.apply(get_surrounding_IC,axis=1)

# ICs.hist(bins=50) # if all aa in a position is 0, the IC is max
# pssms = pssms.loc[ICs>=2.2]

max_val = pssms.apply(get_surrounding_max,axis=1)

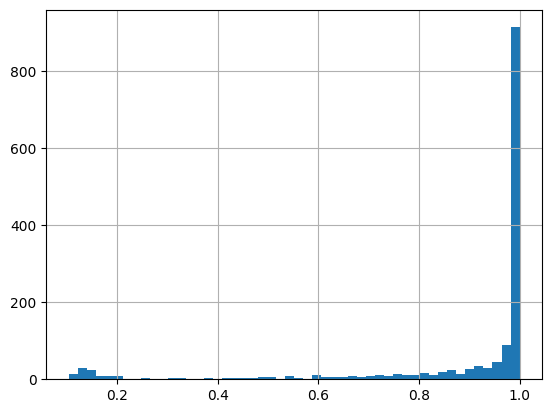

max_val.hist(bins=50)

len(pssms) # before filtering

1476

pssms = pssms.loc[max_val>=0.4]

pssms.shape # after

(1363, 943)

Hierarchical clustering

Hierarchical clustering of all pssms

from scipy.cluster.hierarchy import linkage, fcluster,dendrogram

import pandas as pd
from katlas.core import *

# pssms = pd.read_parquet('raw/kmeans.parquet')

Z = get_Z(pssms)

labels= get_pssm_seq_labels(pssms,thr=0.3)

plot_dendrogram?

Signature: plot_dendrogram(Z, color_thr=0.07, dense=7, line_width=1, **kwargs)
Docstring: <no docstring>
File:      ~/git/KATLAS/katlas/katlas/clustering.py
Type:      function

plot_dendrogram(Z,color_thr=0.05, labels=labels)
save_pdf('dendrogram.pdf')
plt.close()

Visualize and find out the color threshold that works.

After determine the color threshold, use it to cut the tree.

Visualize some logos

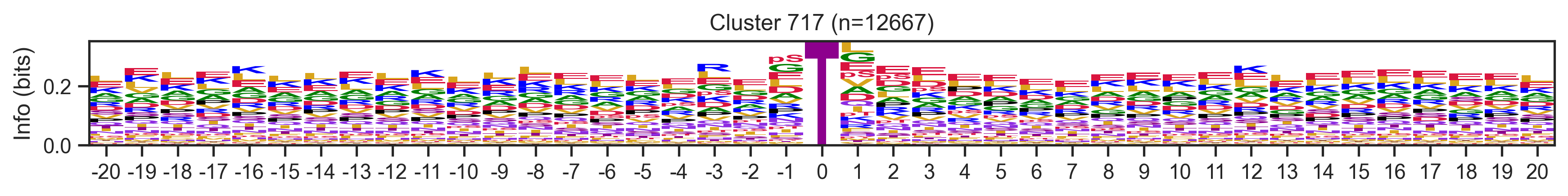

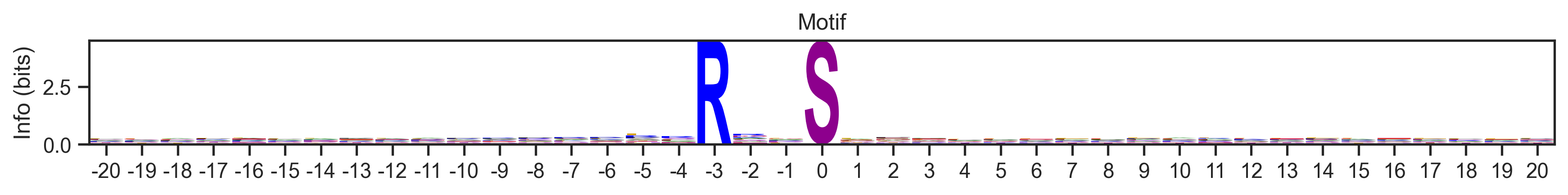

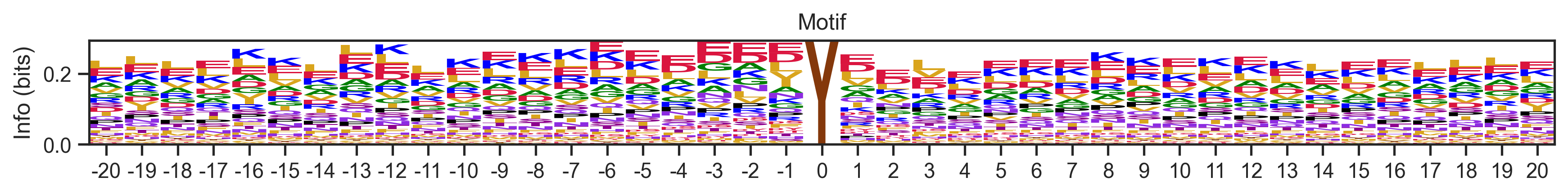

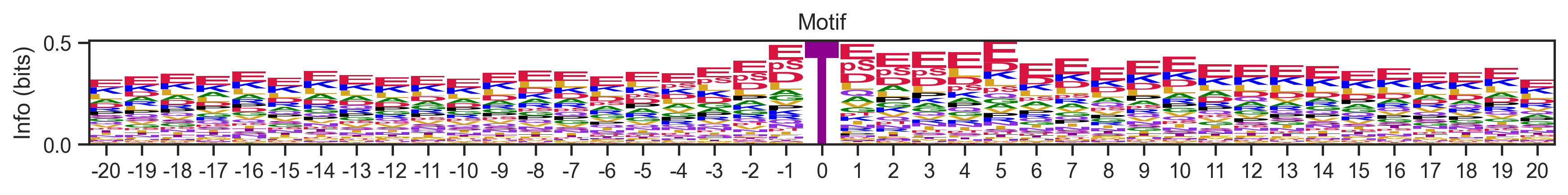

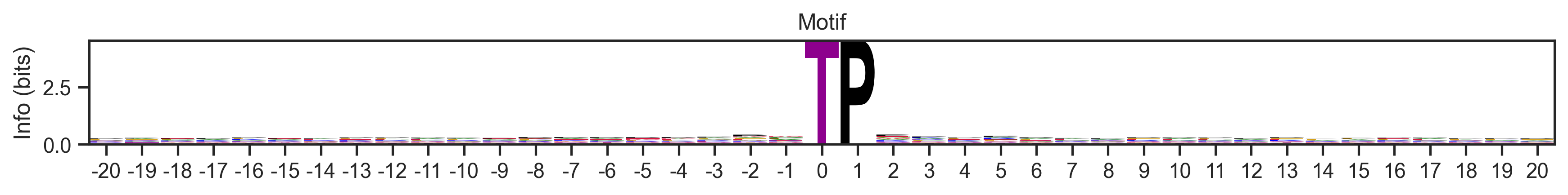

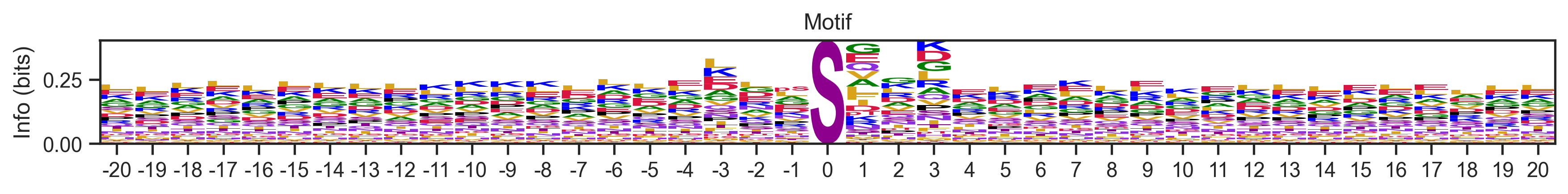

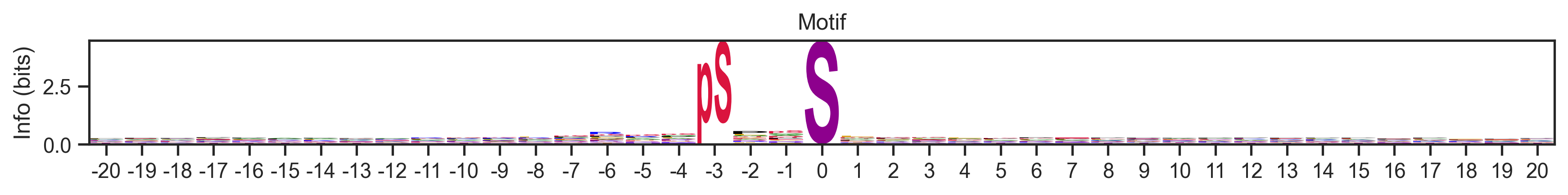

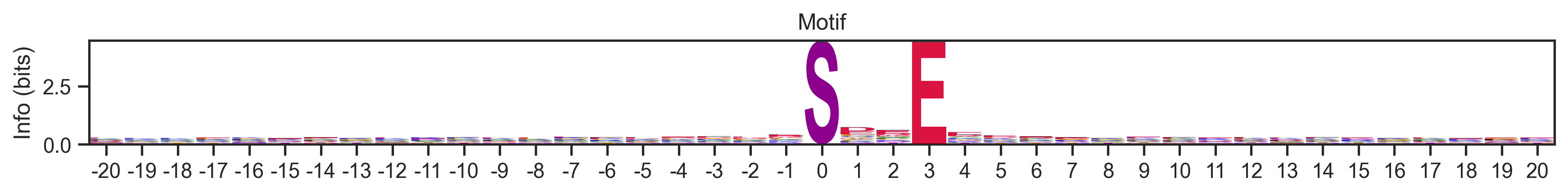

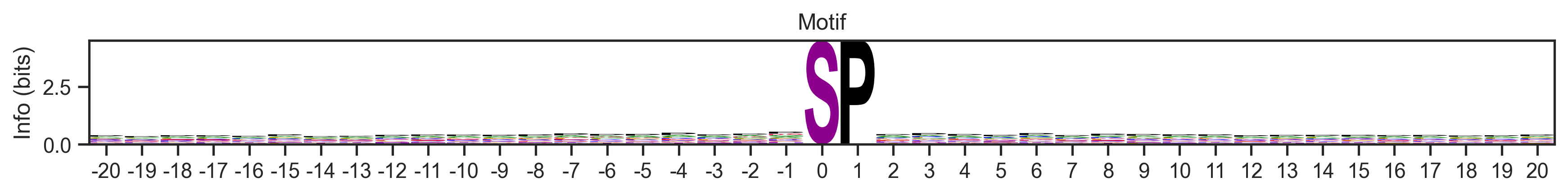

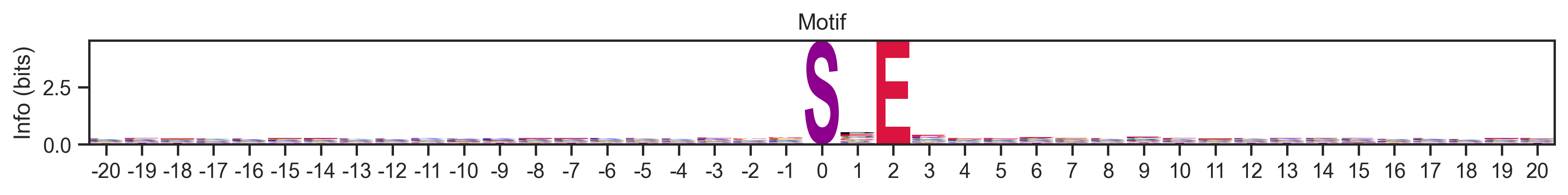

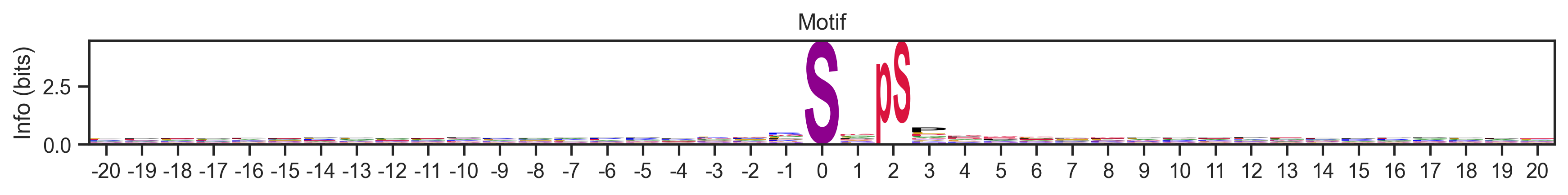

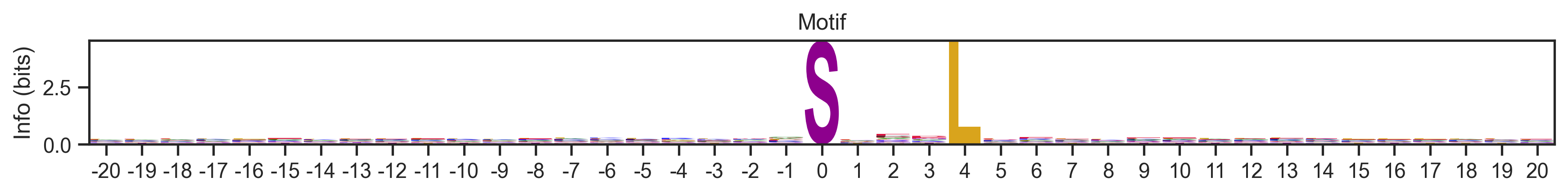

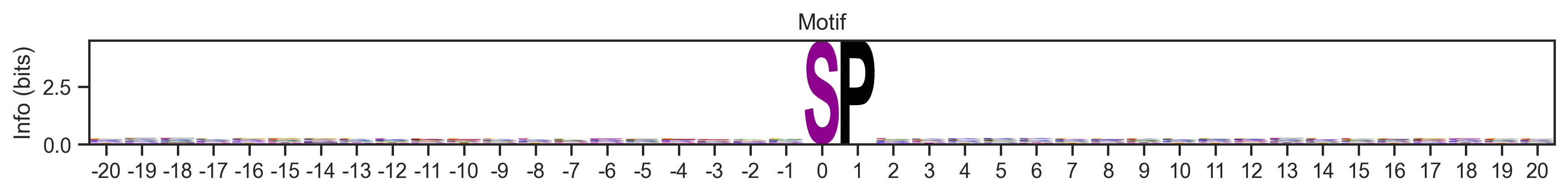

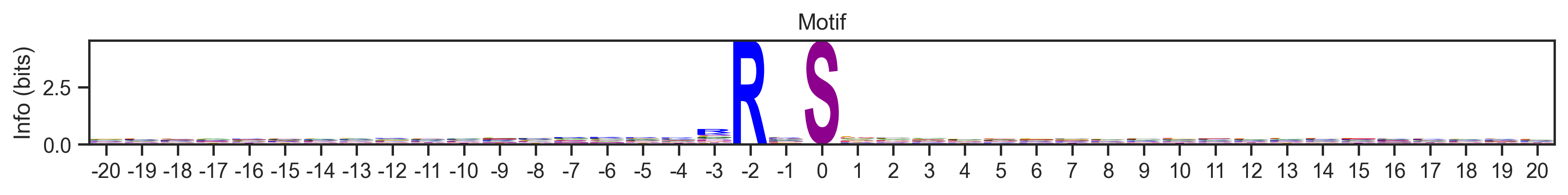

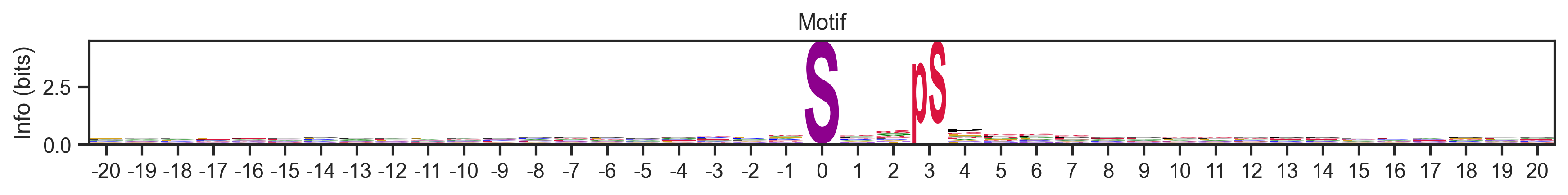

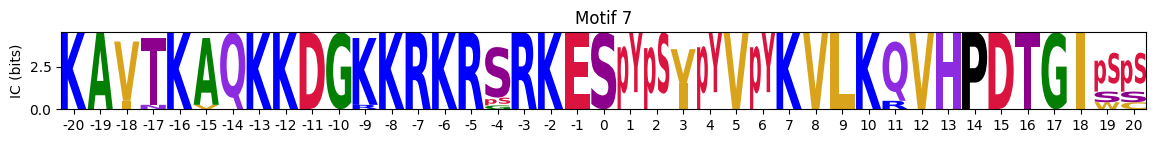

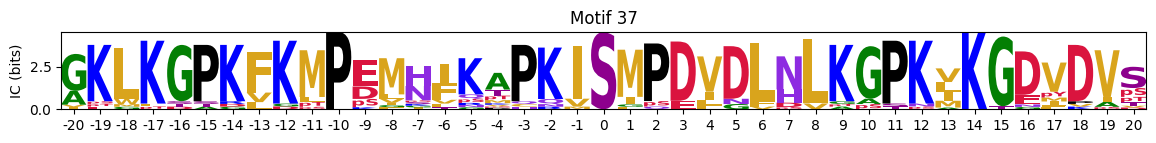

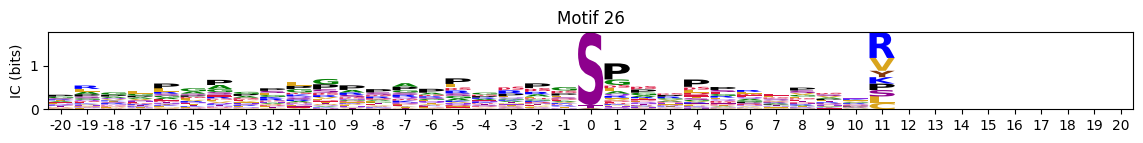

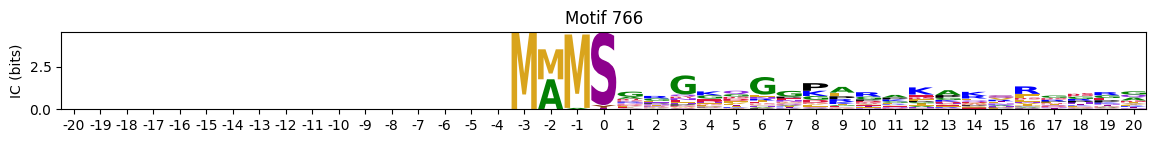

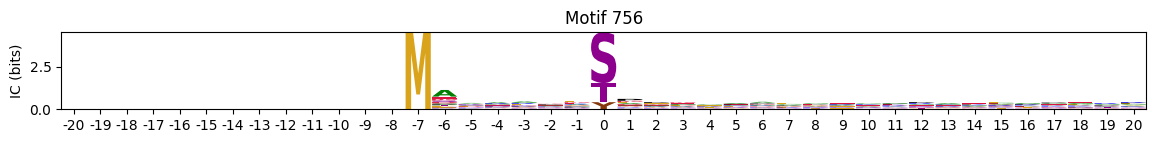

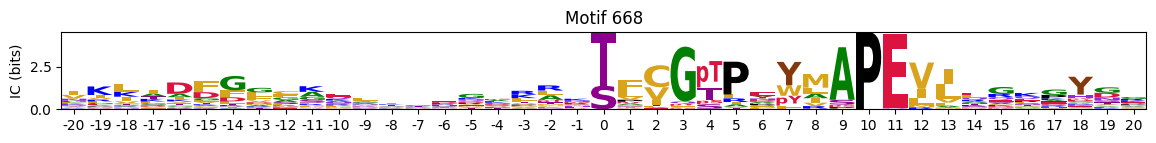

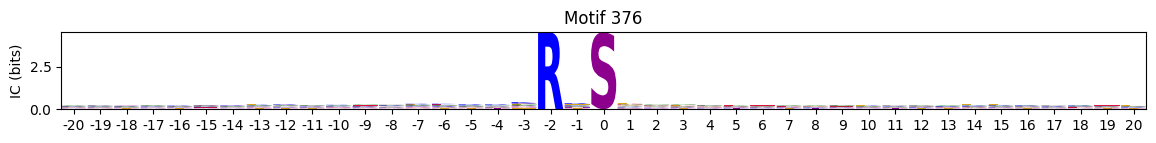

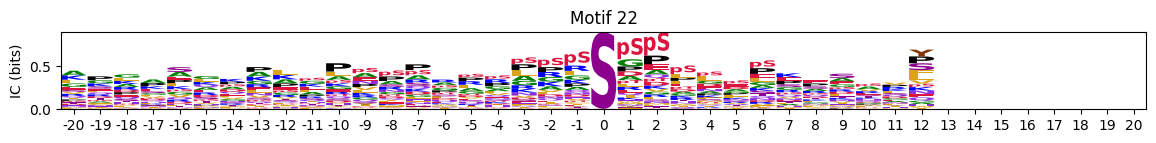

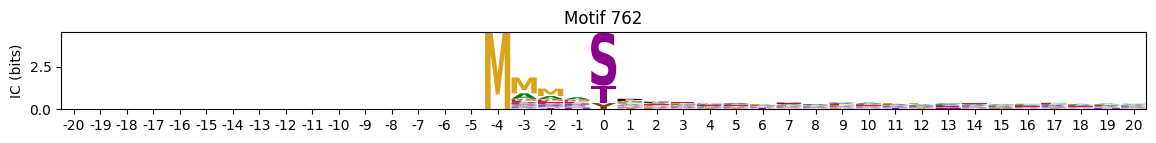

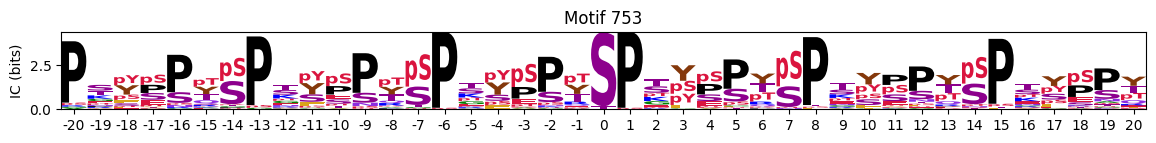

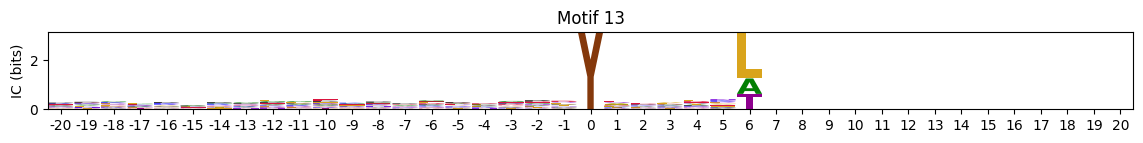

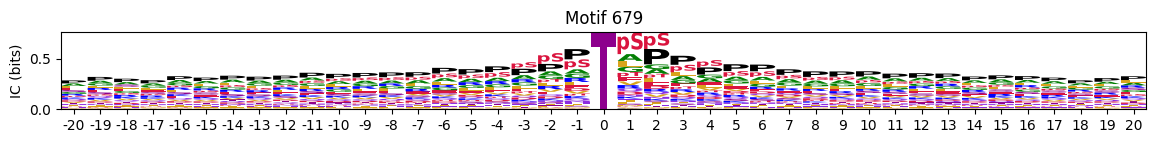

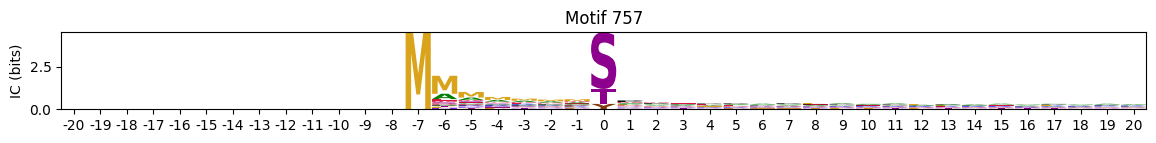

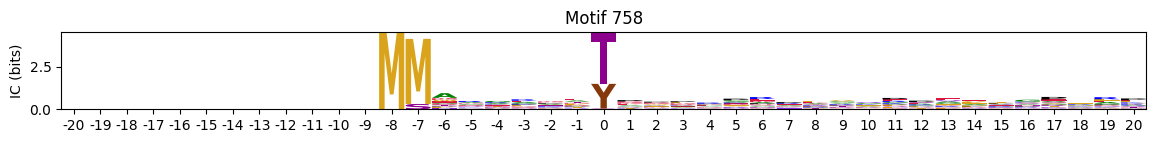

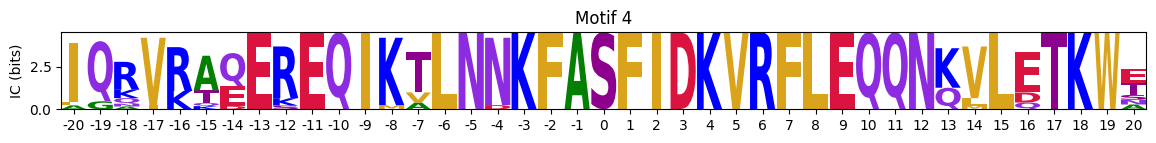

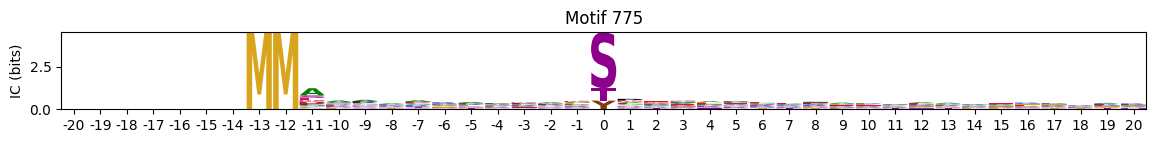

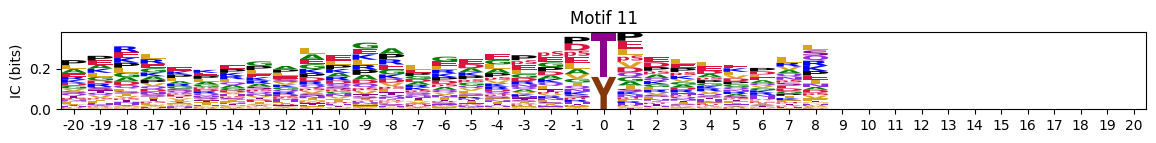

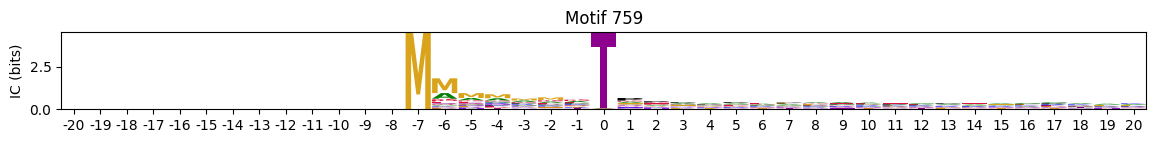

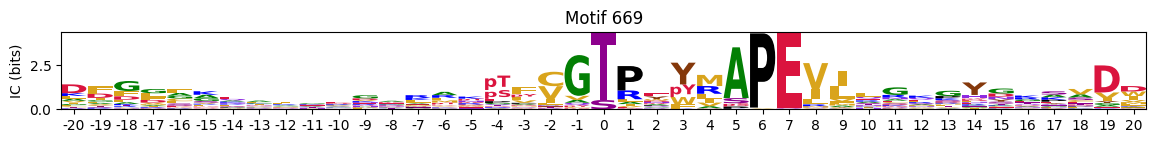

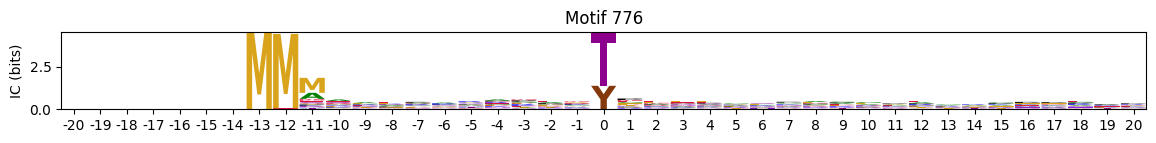

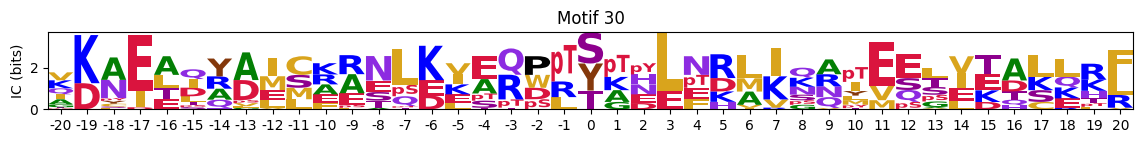

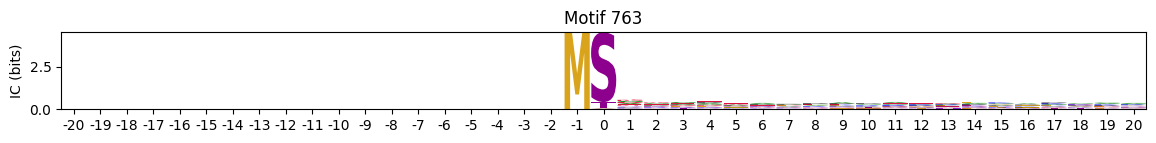

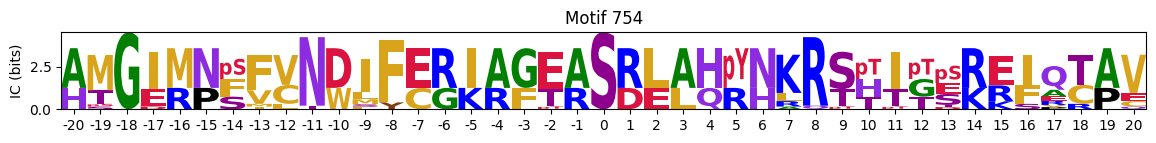

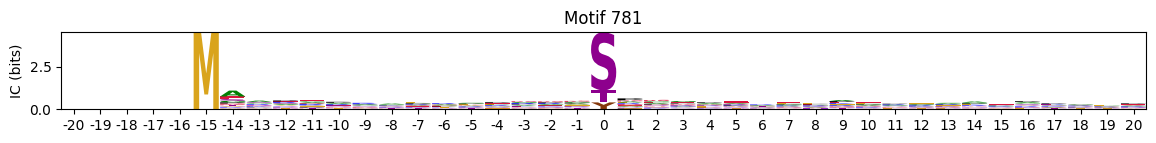

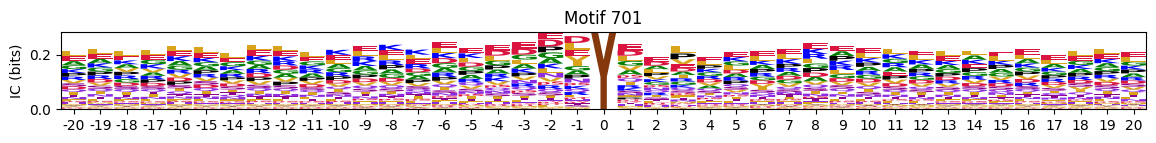

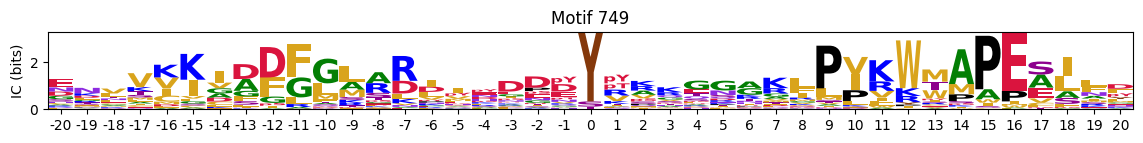

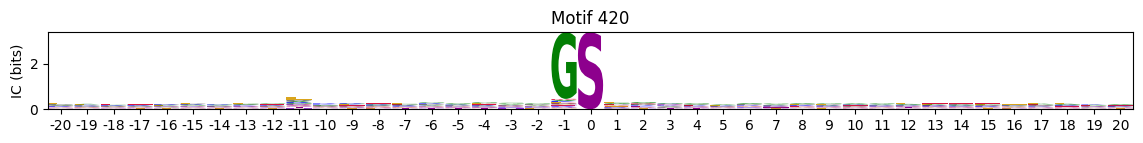

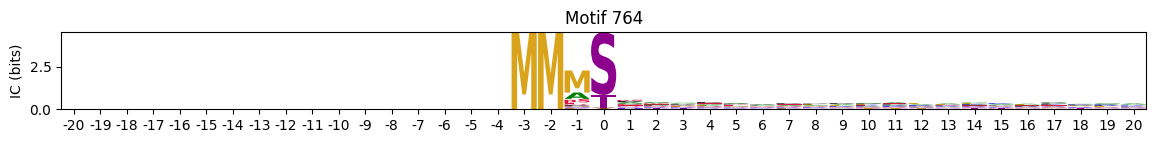

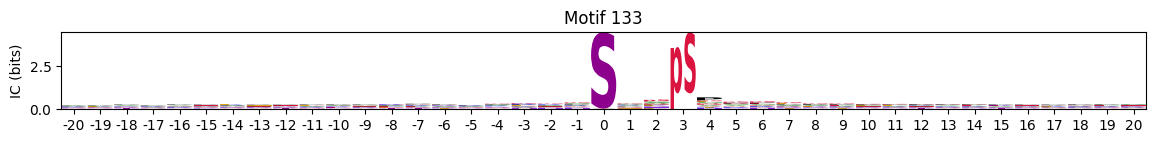

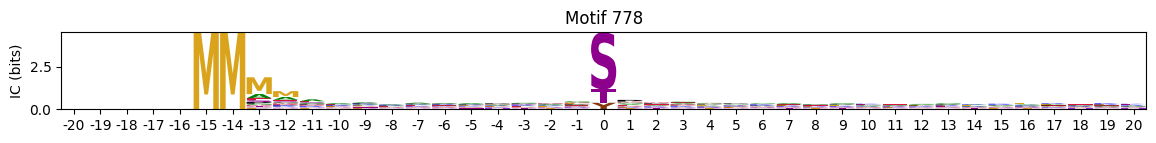

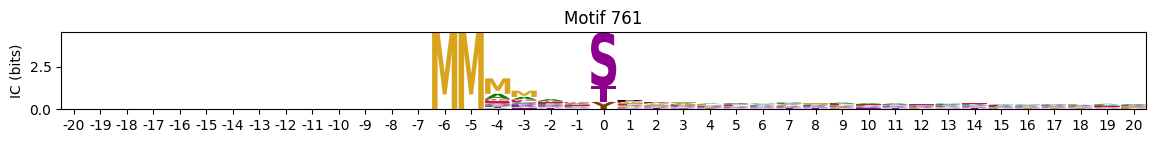

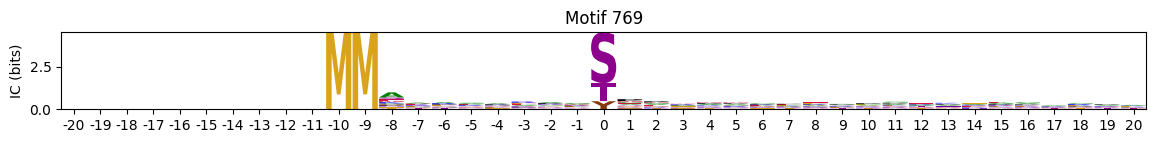

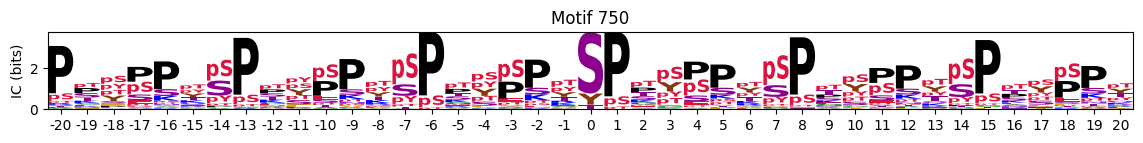

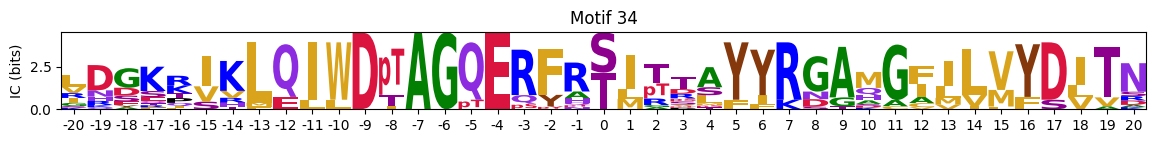

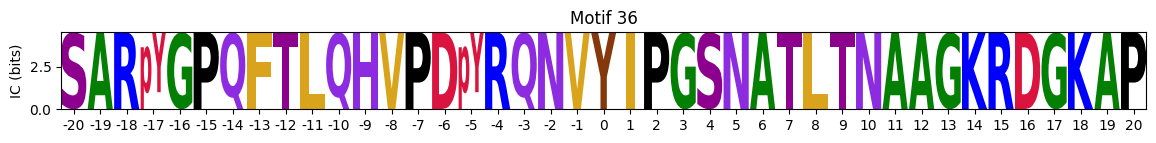

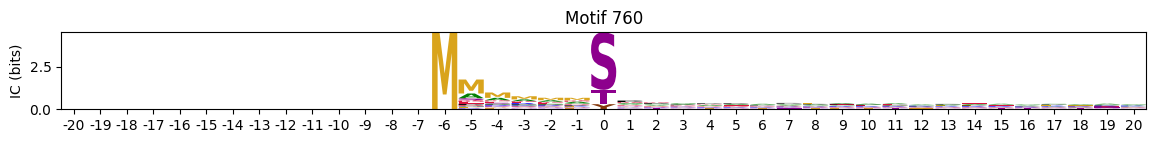

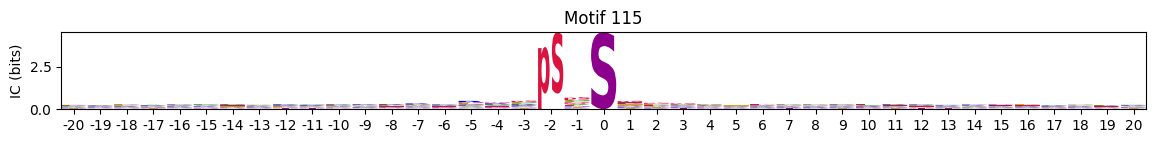

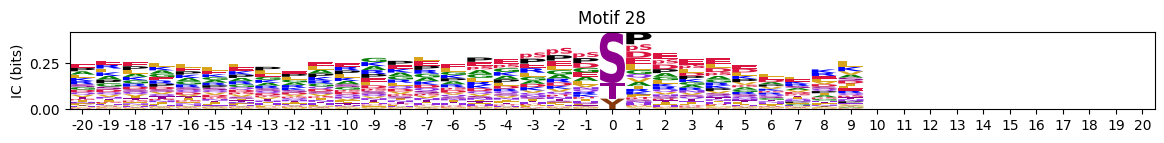

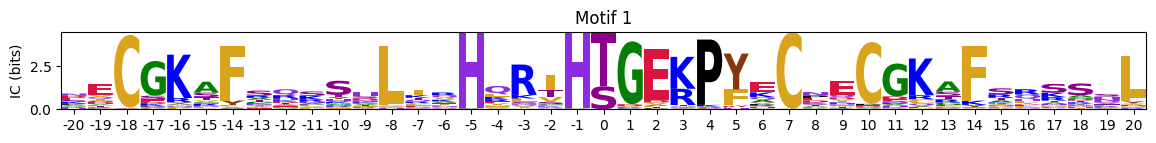

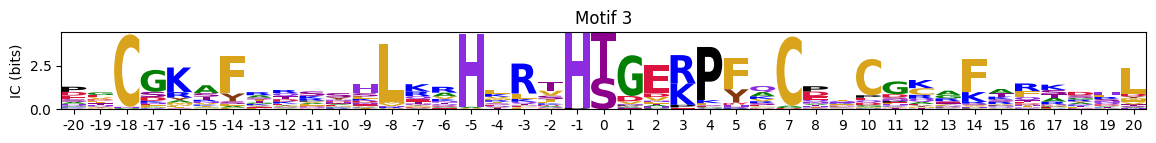

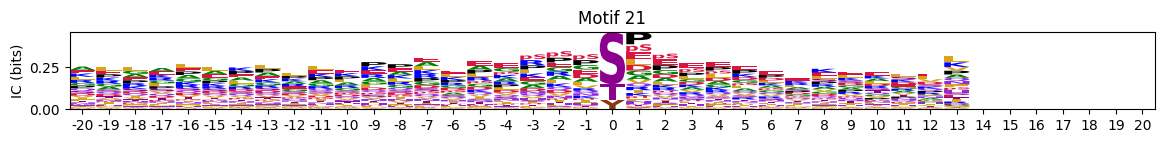

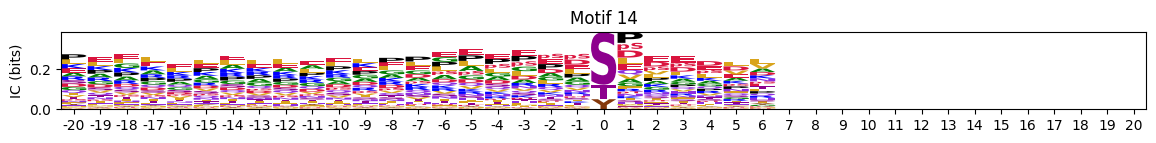

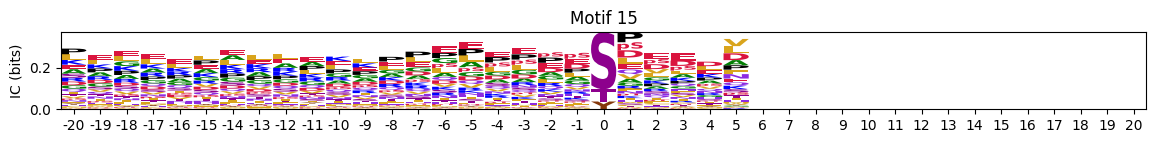

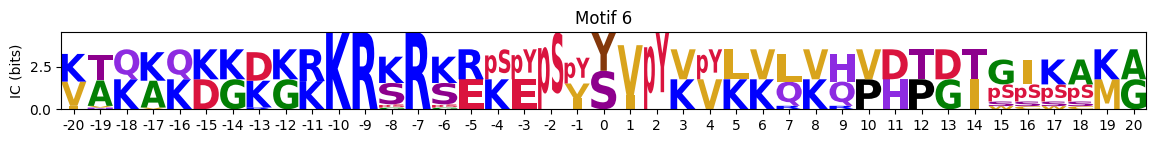

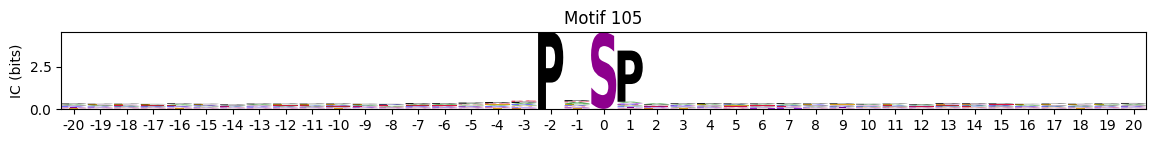

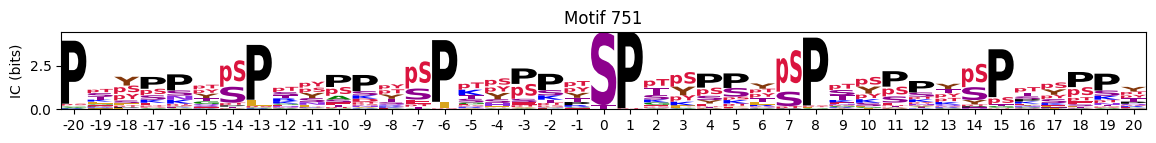

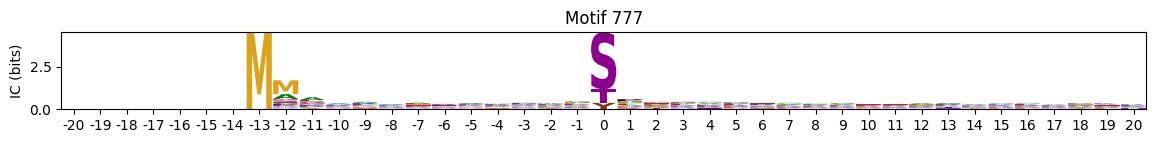

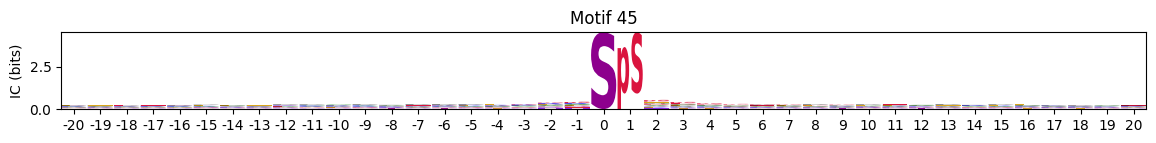

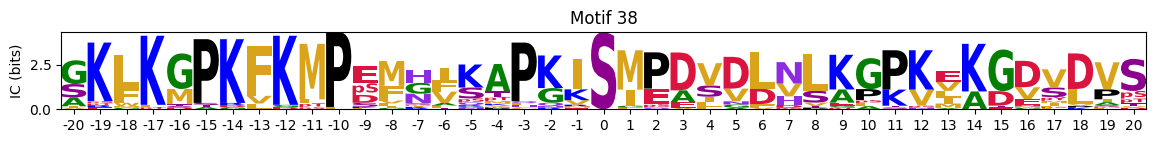

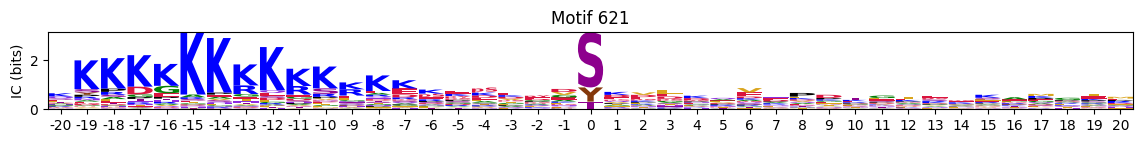

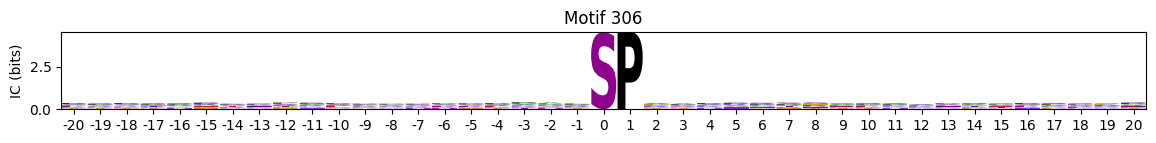

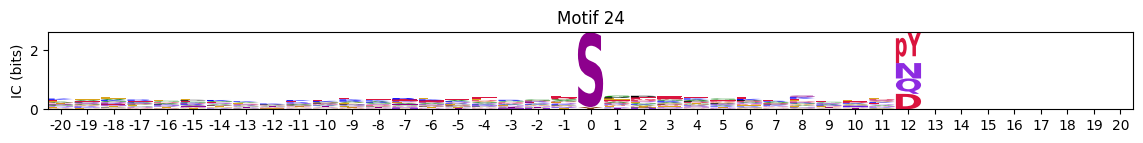

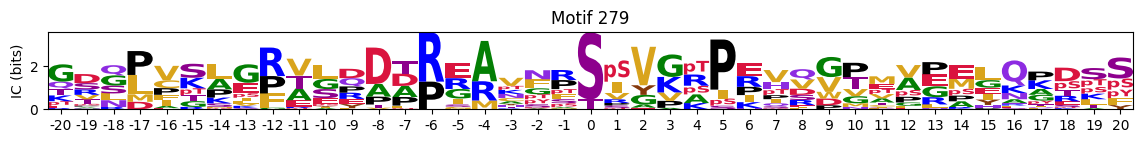

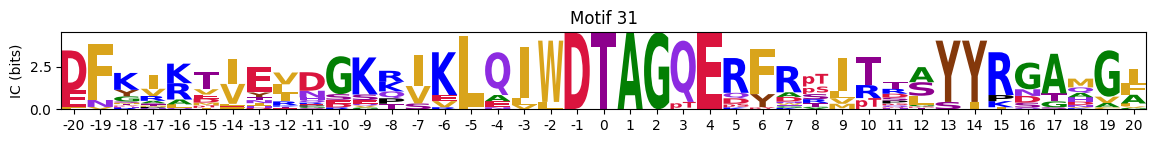

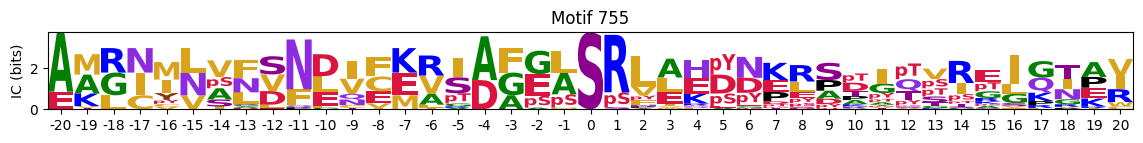

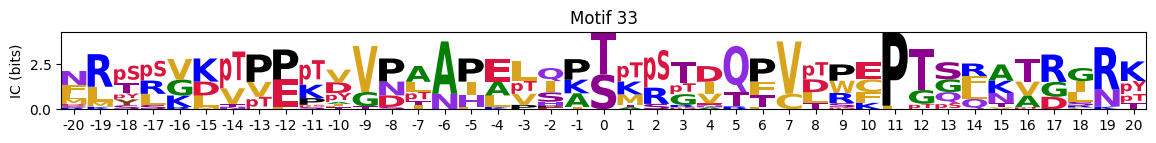

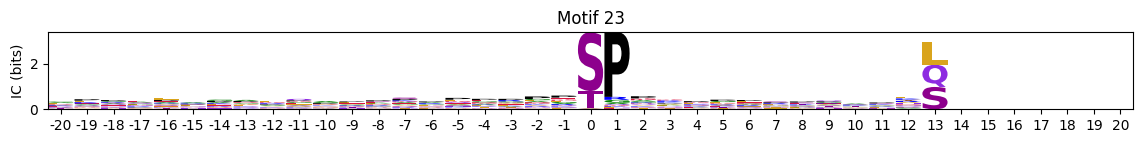

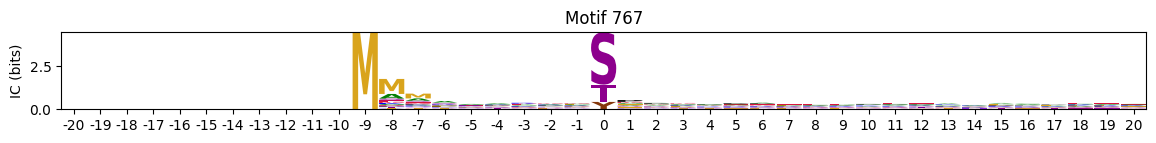

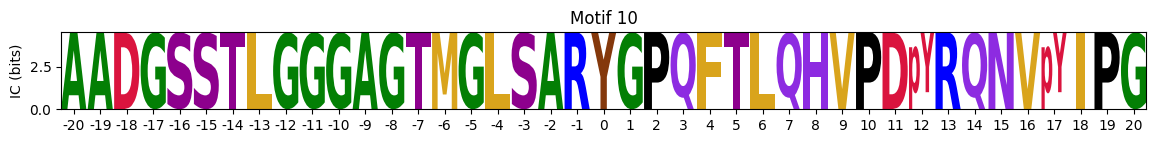

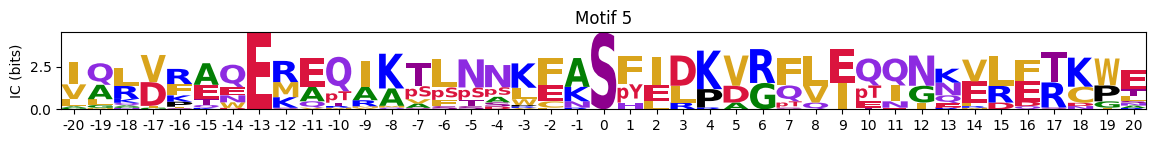

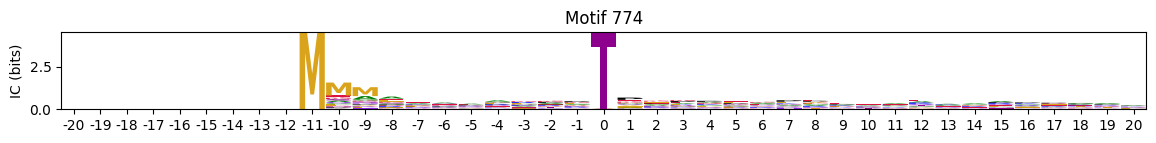

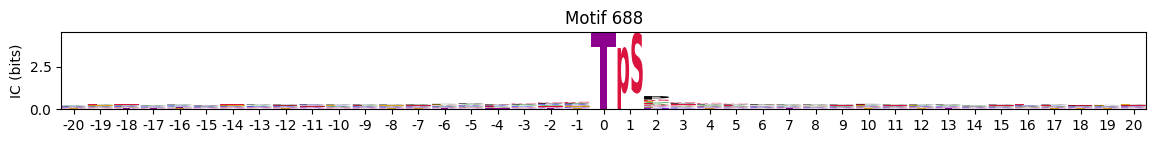

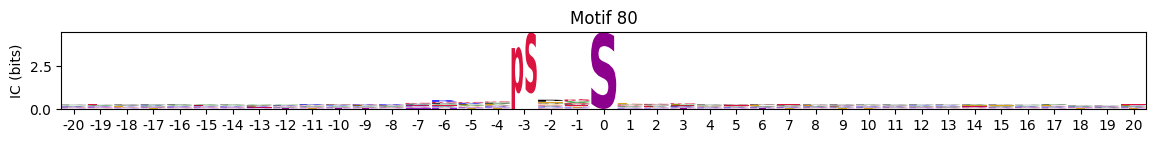

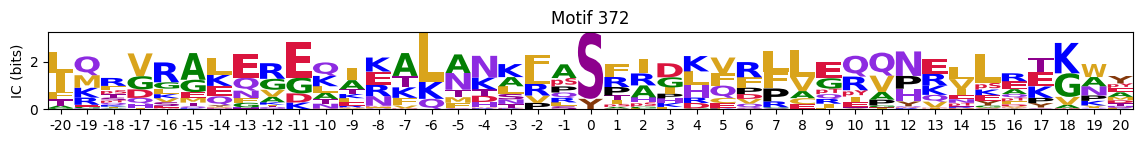

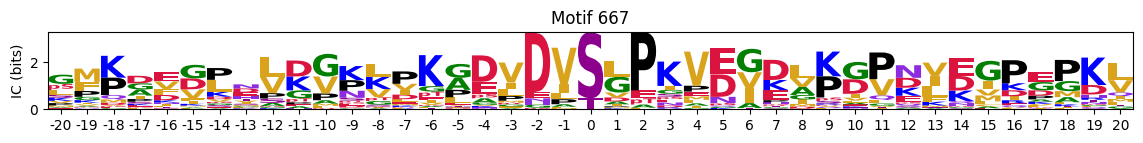

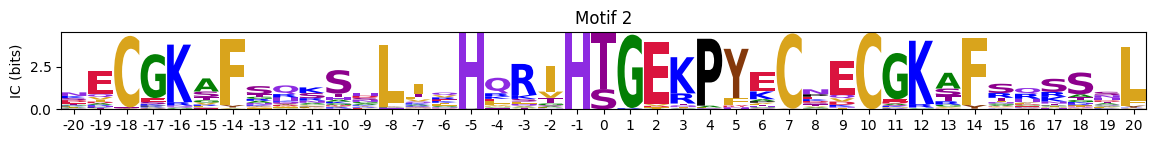

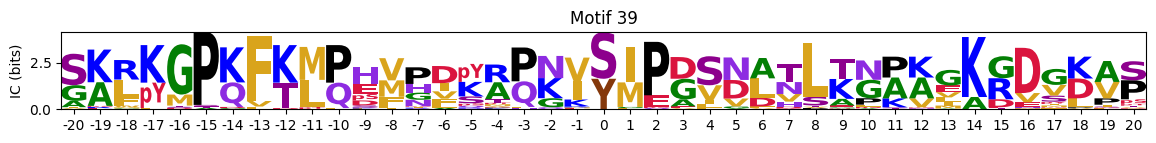

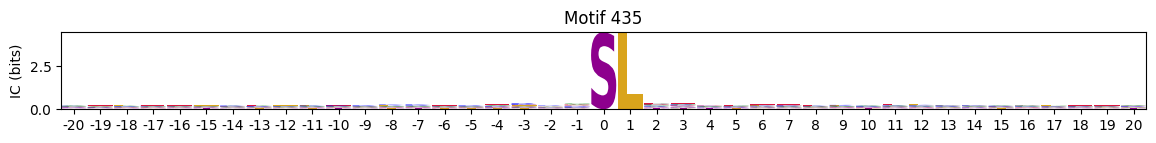

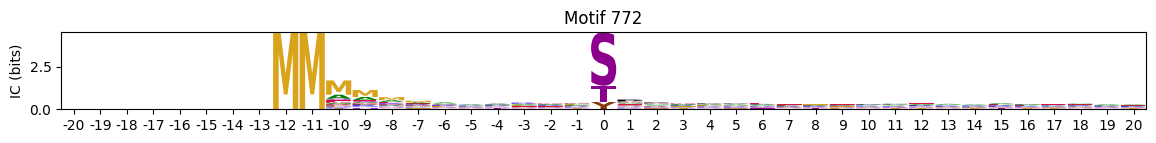

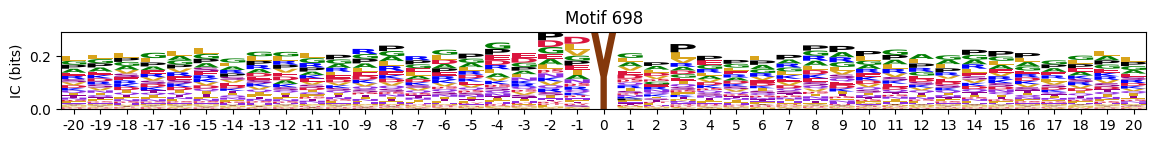

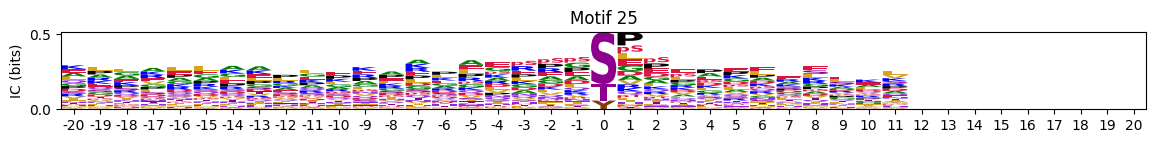

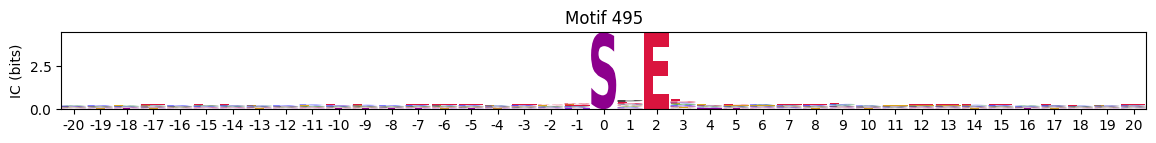

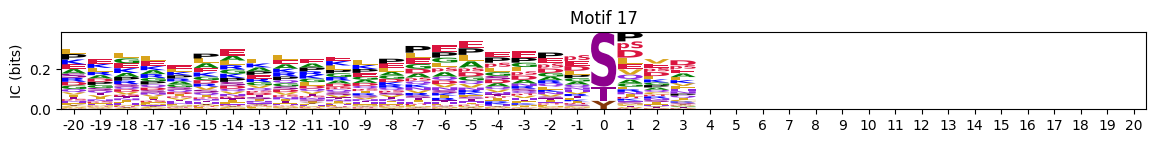

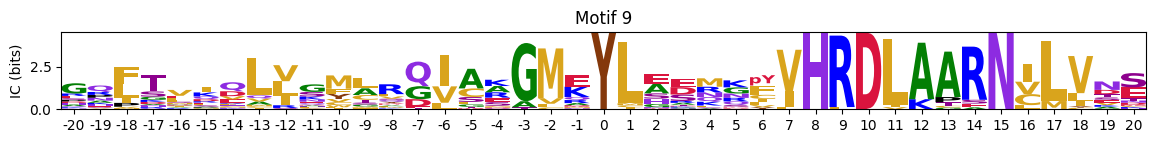

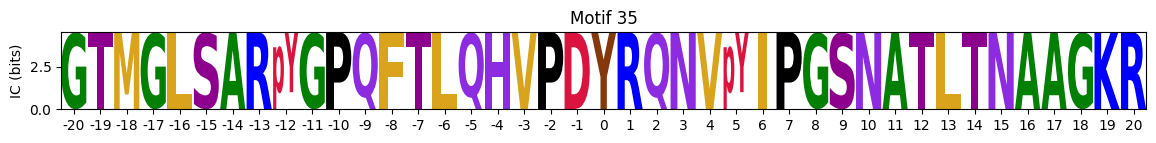

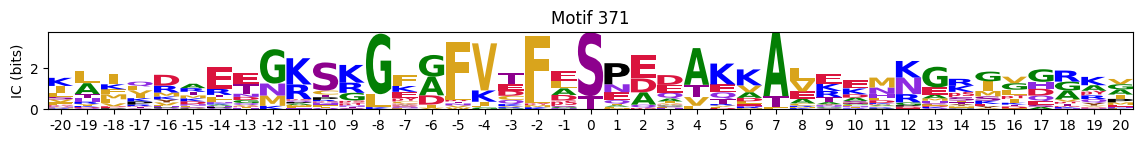

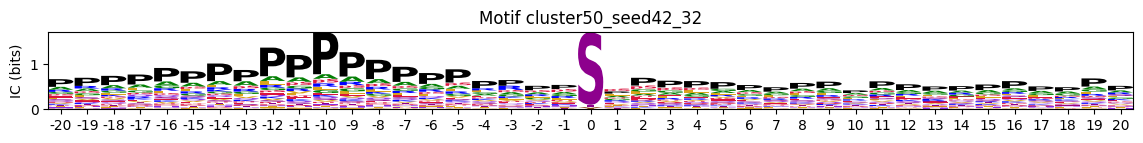

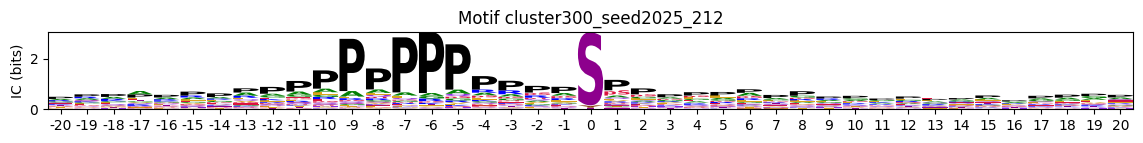

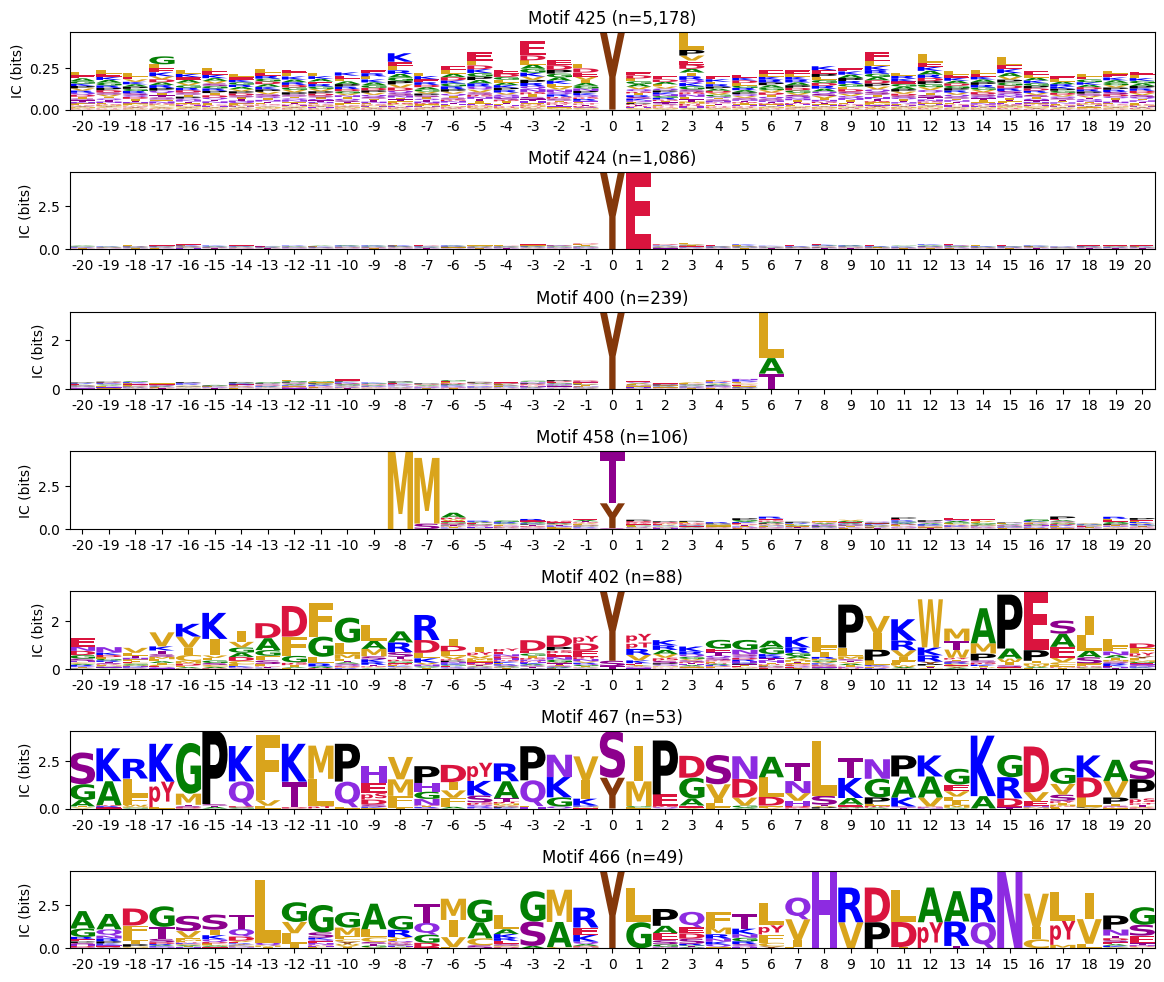

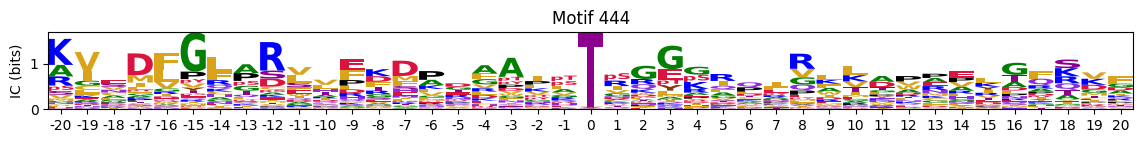

plot_logos_idx(pssms, 'cluster50_seed42_32','cluster300_seed2025_212')

Cut trees to merge similar pssms

labels = fcluster(Z, t=0.05, criterion='distance')
# pssm_df['cluster'] = labels

len(labels)

1363

np.unique(labels)[:10] # always start from 1

array([ 1,  2,  3,  4,  5,  6,  7,  8,  9, 10], dtype=int32)

Expand the cluster into a single column

id_vars = ['sub_site', 'site_seq']
value_vars = [col for col in all_site.columns if col.startswith('cluster')]

all_site_long = pd.melt(all_site, id_vars=id_vars, value_vars=value_vars, var_name='cluster_info', value_name='cluster')

all_site_long['cluster_id']=all_site_long['cluster_info'] + '_' + all_site_long['cluster'].astype(str)

all_site_long.head()

	sub_site	site_seq	cluster_info	cluster	cluster_id
0	A0A024R4G9_S20	_MTVLEAVLEIQAITGSRLLsMVPGPARPPGSCWDPTQCTR	cluster50_seed42	33	cluster50_seed42_33
1	A0A075B6Q4_S24	QKSENEDDSEWEDVDDEKGDsNDDYDSAGLLsDEDCMSVPG	cluster50_seed42	41	cluster50_seed42_41
2	A0A075B6Q4_S35	EDVDDEKGDsNDDYDSAGLLsDEDCMSVPGKTHRAIADHLF	cluster50_seed42	30	cluster50_seed42_30
3	A0A075B6Q4_S57	EDCMSVPGKTHRAIADHLFWsEETKSRFTEYsMTssVMRRN	cluster50_seed42	30	cluster50_seed42_30
4	A0A075B6Q4_S68	RAIADHLFWsEETKSRFTEYsMTssVMRRNEQLTLHDERFE	cluster50_seed42	11	cluster50_seed42_11

# all_site_long.to_parquet('raw/kmeans_site_long.parquet',index=False)

Map merged cluster

len(labels)

1363

max(labels)

np.int32(467)

cluster_map = pd.Series(labels,index=pssms.index)

cluster_map.sort_values()

index
cluster150_seed42_123        1
cluster150_seed2025_23       1
cluster300_seed28_273        2
cluster50_seed28_10          3
cluster150_seed2025_61       3
                          ...
cluster150_seed28_117      464
cluster300_seed2025_293    464
cluster300_seed42_208      465
cluster300_seed42_122      466
cluster150_seed28_135      467
Length: 1363, dtype: int32

For those unmapped cluster_ID, we assign them zero value:

# not all cluster_id have a corresponding for new cluster ID, as they could be filtered out
all_site_long['cluster_new'] = all_site_long.cluster_id.map(lambda x: cluster_map.get(x, 0)) #0 is unmapped

# all_site_long.to_parquet('raw/kmeans_site_long_cluster_new.parquet',index=False)

Get new cluster motifs

pssms2 = get_cluster_pssms(all_site_long,
                           'cluster_new')

100%|██████████████████████████████████████████████████████████████████████████████████████████| 468/468 [00:17<00:00, 26.74it/s]

Note here we didn’t put count threshold here, the default is 10

pssms2.shape

(468, 943)

pssms2 = pssms2.drop(index=0) # as 0 represents unmapped

# pssms2.to_parquet('out/all_site_pssms.parquet') # the index order is from count high to count low

# pssms2 =pd.read_parquet('out/all_site_pssms.parquet')

Hierarchical clustering of merged pssms

Z2 = get_Z(pssms2)

Note that a sub site may have multiple cluster_new ID, so we need to drop duplicates to get correct value counts

count_map = all_site_long.drop_duplicates(subset=["cluster_new","sub_site"])["cluster_new"].value_counts()

count_map

cluster_new
0      50197
25      7951
70      6831
207     6182
411     6116
       ...
467       53
2         51
466       49
394       49
393       41
Name: count, Length: 468, dtype: int64

# this is incorrect
# cluster_cnt = all_site_long.cluster_new.value_counts()

labels= get_pssm_seq_labels(pssms2,count_map = count_map , thr=0.3)

labels[:4]

['25 (n=7,951): ....................s*P...................',
 '70 (n=6,831): ....................s*.sP.................',
 '207 (n=6,182): .................R..s*....................',
 '411 (n=6,116): ....................t*P...................']

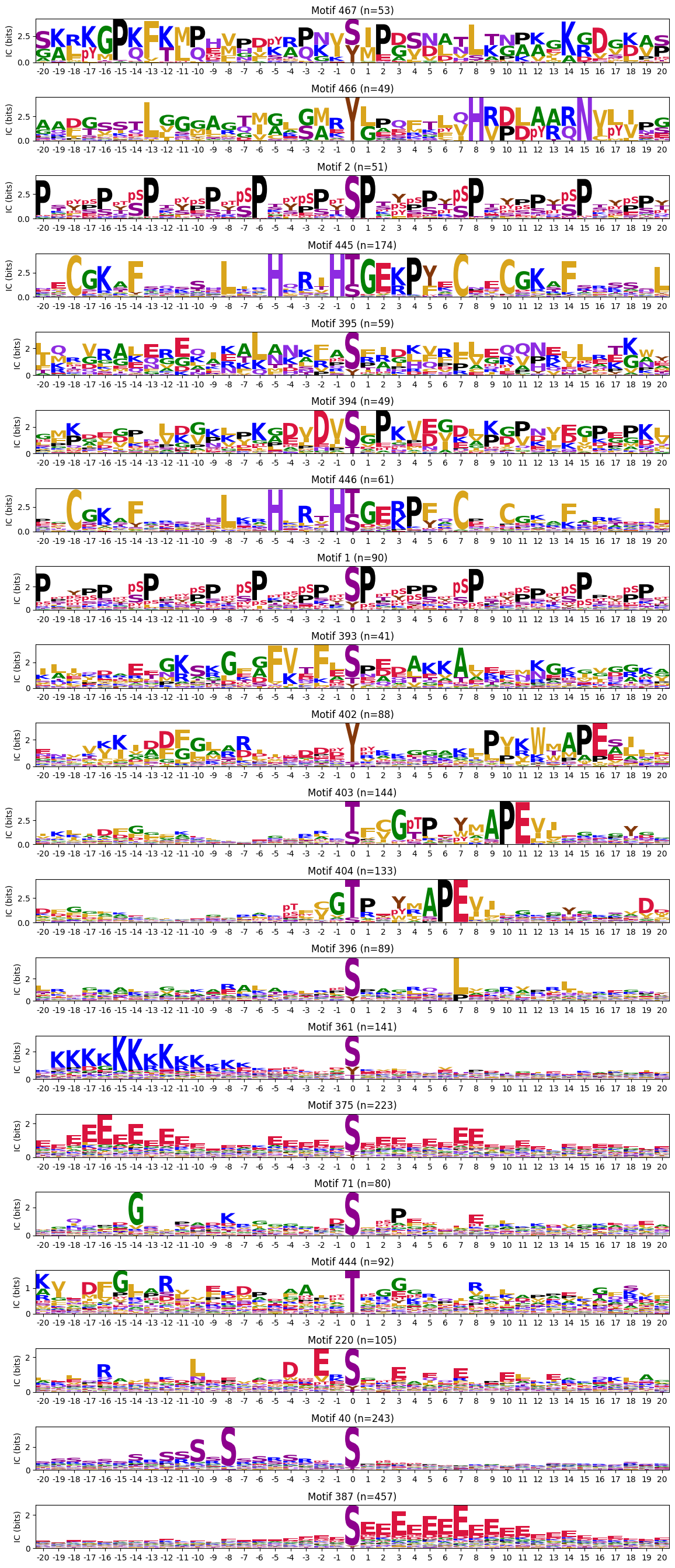

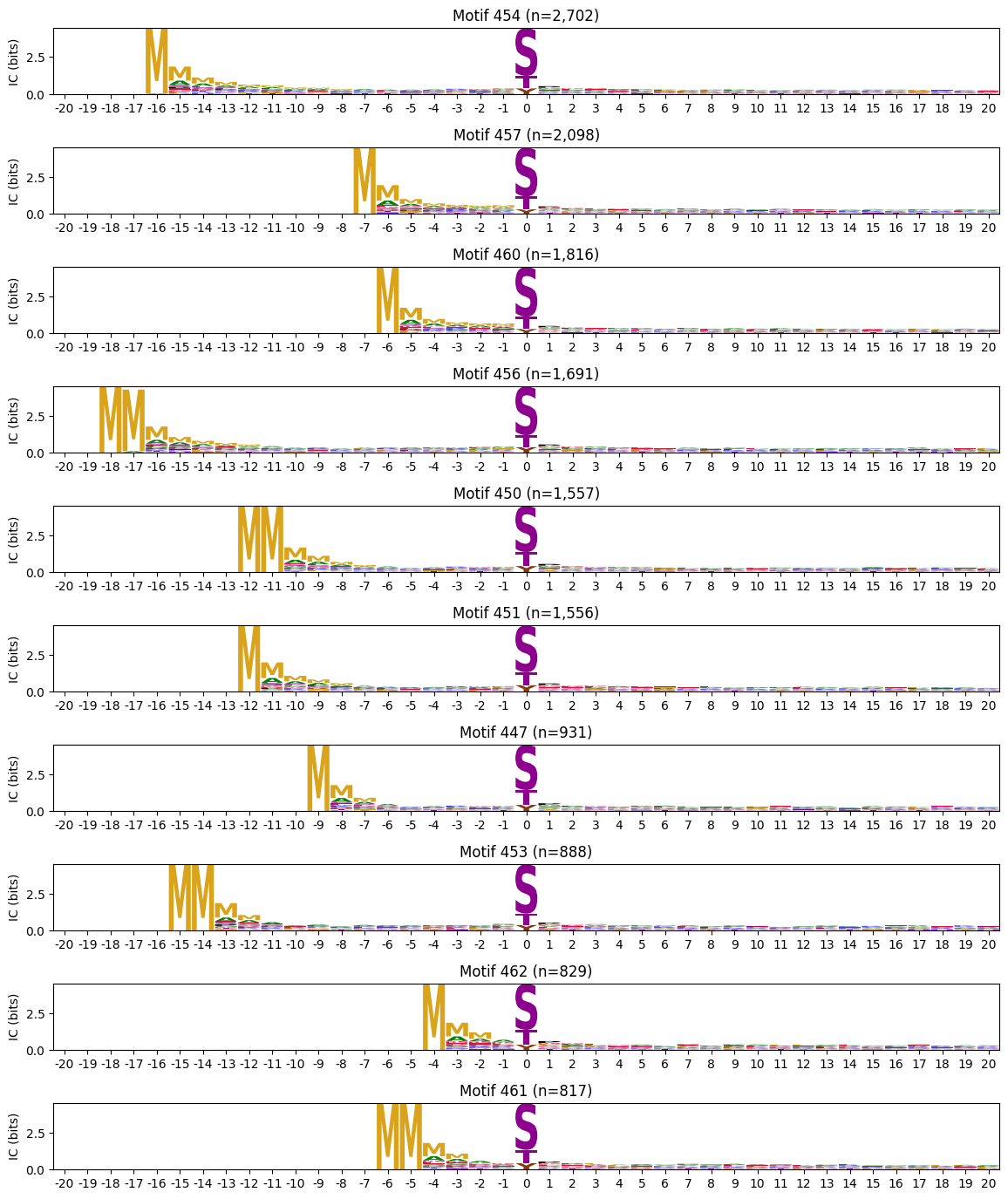

plot_dendrogram(Z2,labels=labels,color_thr=0.07)
save_pdf('raw/dendrogram.pdf')
save_svg('raw/human_motif_dendrogram.svg')
plt.close()

Onehot of cluster number

# all_site_long = pd.read_parquet('raw/kmeans_site_long.parquet')

all_site_long['sub_site_seq'] = all_site_long['sub_site']+'_'+all_site_long['site_seq']

all_site_onehot = pd.crosstab(all_site_long['sub_site_seq'], all_site_long['cluster_new'])

# greater than 0 to be True and convert to int
all_site_onehot = all_site_onehot.gt(0).astype(int)

all_site_onehot.max()

cluster_new
0      1
1      1
2      1
3      1
4      1
      ..
463    1
464    1
465    1
466    1
467    1
Length: 468, dtype: int64

# remove 0 as it is unassigned for cut tree
all_site_onehot = all_site_onehot.drop(columns=0)

all_site_onehot.sum().sort_values()

cluster_new
393      41
394      49
466      49
2        51
467      53
       ...
55     5881
411    6116
207    6182
70     6831
25     7951
Length: 467, dtype: int64

# for save in parquet, needs column type to be str
all_site_onehot.columns = all_site_onehot.columns.astype(str)

# all_site_onehot.to_parquet('out/all_site_cluster_onehot.parquet')

# all_site_onehot=pd.read_parquet('out/all_site_cluster_onehot.parquet')

all_site_onehot

cluster_new	1	2	3	4	5	6	7	8	9	10	...	458	459	460	461	462	463	464	465	466	467
sub_site_seq
A0A024R4G9_S20__MTVLEAVLEIQAITGSRLLsMVPGPARPPGSCWDPTQCTR	0	0	0	0	0	0	0	0	0	0	...	0	0	0	0	0	0	0	0	0	0
A0A075B6Q4_S24_QKSENEDDSEWEDVDDEKGDsNDDYDSAGLLsDEDCMSVPG	0	0	0	0	0	0	0	0	0	0	...	0	0	0	0	0	0	0	0	0	0
A0A075B6Q4_S35_EDVDDEKGDsNDDYDSAGLLsDEDCMSVPGKTHRAIADHLF	0	0	0	0	0	0	0	0	0	0	...	0	0	0	0	0	0	0	0	0	0
A0A075B6Q4_S57_EDCMSVPGKTHRAIADHLFWsEETKSRFTEYsMTssVMRRN	0	0	0	0	0	0	0	0	0	0	...	0	0	0	0	0	0	0	0	0	0
A0A075B6Q4_S68_RAIADHLFWsEETKSRFTEYsMTssVMRRNEQLTLHDERFE	0	0	0	0	0	0	0	0	0	0	...	0	0	0	0	0	0	0	0	0	0
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
V9GYY5_S132_RLLGLtPPEGGAGDRsEEEAsstEKPtKALPRKSRDPLLSQ	0	0	0	0	0	0	0	0	0	0	...	0	0	0	0	0	0	0	0	0	0
V9GYY5_S133_LLGLtPPEGGAGDRsEEEAsstEKPtKALPRKSRDPLLSQR	0	0	0	0	0	0	0	0	0	0	...	0	0	0	0	0	0	0	0	0	0
V9GYY5_T117_TVTVTTISDLDLsGARLLGLtPPEGGAGDRsEEEAsstEKP	0	0	0	0	0	0	0	0	0	0	...	0	0	0	0	0	0	0	0	0	0
V9GYY5_T134_LGLtPPEGGAGDRsEEEAsstEKPtKALPRKSRDPLLSQRI	0	0	0	0	0	0	0	0	0	0	...	0	0	0	0	0	0	0	0	0	0
V9GYY5_T138_PPEGGAGDRsEEEAsstEKPtKALPRKSRDPLLSQRISSLT	0	0	0	0	0	0	0	0	0	0	...	0	0	0	0	0	0	0	0	0	0

131843 rows × 467 columns

# switch back to int for downstream
all_site_onehot.columns = all_site_onehot.columns.astype(int)

import numpy as np
def get_entropy(pssm_df,# a dataframe of pssm with index as aa and column as position
            return_min=False, # return min entropy as a single value or return all entropy as a pd.series
            exclude_zero=False, # exclude the column of 0 (center position) in the entropy calculation
            clean_zero=True, # if true, zero out non-last three values in position 0 (keep only s,t,y values at center)
            ):
    "Calculate entropy per position of a PSSM surrounding 0. The less entropy the more information it contains."
    pssm_df = pssm_df.copy()
    pssm_df.columns= pssm_df.columns.astype(int)
    if 0 in pssm_df.columns:
        if clean_zero:
            pssm_df.loc[pssm_df.index[:-3], 0] = 0
        if exclude_zero:
            # remove columns starts with zero and columns with interger name 0
            cols_to_drop = [col for col in pssm_df.columns
                            if col == 0 or (isinstance(col, str) and col.startswith('0'))]
            if cols_to_drop: pssm_df = pssm_df.drop(columns=cols_to_drop)

    pssm_df = pssm_df/pssm_df.sum()
    per_position = -np.sum(pssm_df * np.log2(pssm_df + EPSILON), axis=0)
    per_position[pssm_df.sum() == 0] = 0
    return float(per_position.min()) if return_min else per_position


def get_IC(pssm_df,**kwargs):
    """
    Calculate the information content (bits) from a frequency matrix,
    using log2(3) for the middle position and log2(len(pssm_df)) for others.
    The higher the more information it contains.
    """

    entropy_position = get_entropy(pssm_df,**kwargs)

    max_entropy_array = pd.Series(np.log2(len(pssm_df)), index=entropy_position.index)

    # set exclude_zero to False
    exclude_zero = kwargs.get('exclude_zero', False)
    if exclude_zero is False: max_entropy_array[0] = np.log2(3)

    # information_content = max_entropy - entropy --> log2(N) - entropy
    IC_position = max_entropy_array - entropy_position

    # if entropy is zero, set to zero as there's no value
    IC_position[entropy_position == 0] = 0
    return IC_position

def get_IC_flat(flat_pssm:pd.Series,**kwargs):
    """Calculate the information content (bits) from a flattened pssm pd.Series,
    using log2(3) for the middle position and log2(len(pssm_df)) for others."""

    pssm_df = recover_pssm(flat_pssm)
    return get_IC(pssm_df,**kwargs)

Special motifs

# pssms2 = pd.read_parquet(

# all_site_onehot = pd.read_parquet(

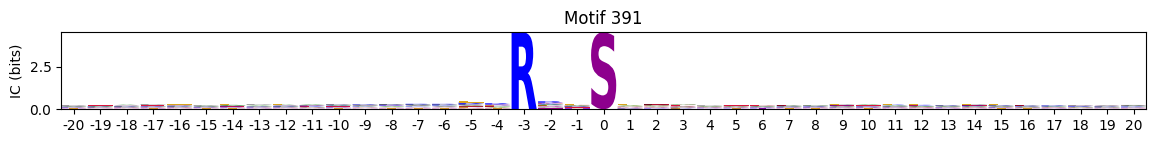

Customized

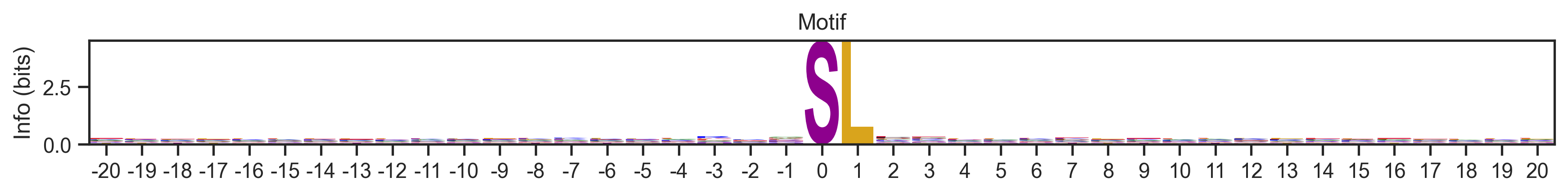

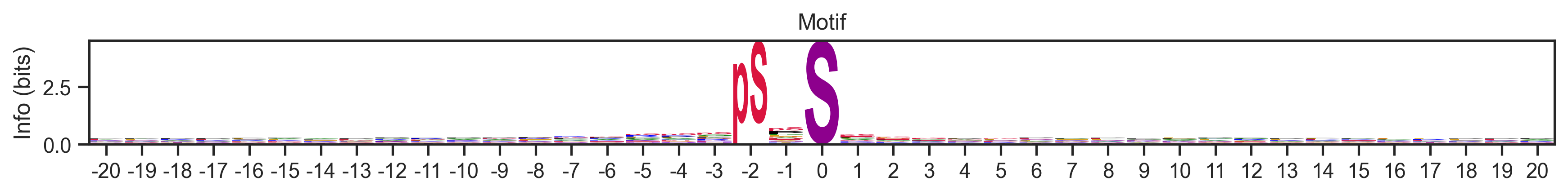

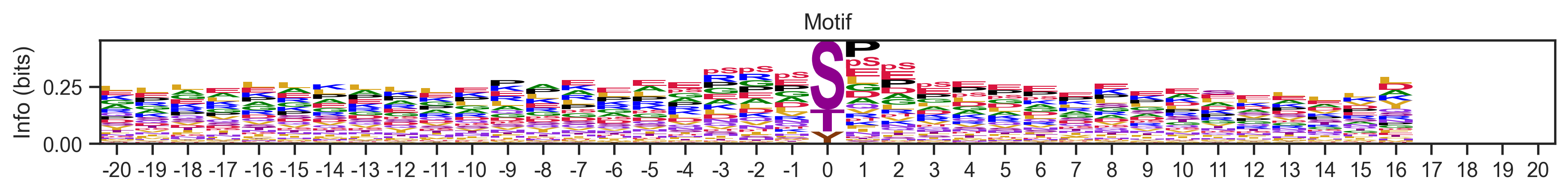

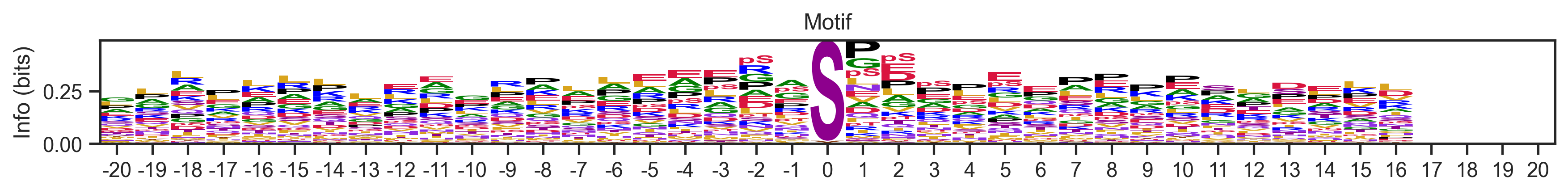

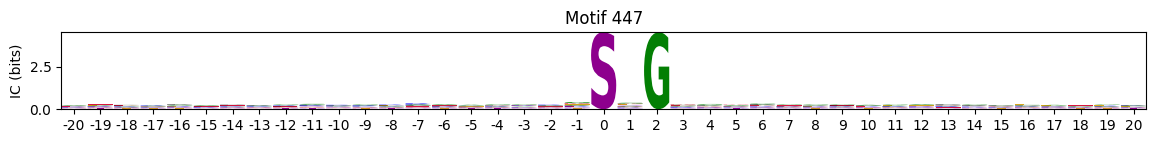

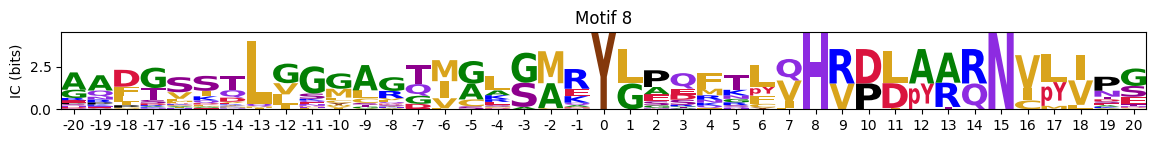

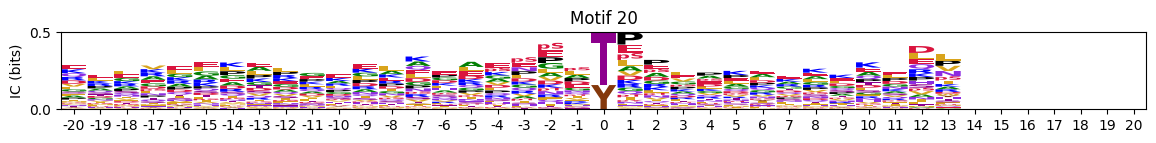

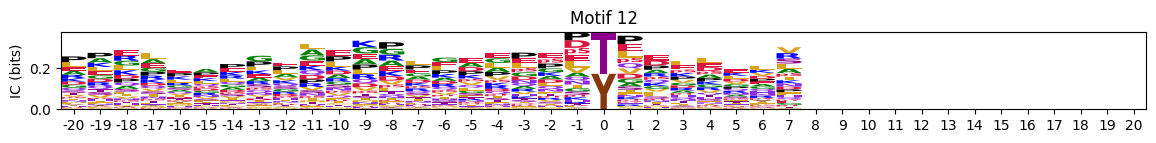

plot_logos_idx(pssms2,446,445,402,444,404)

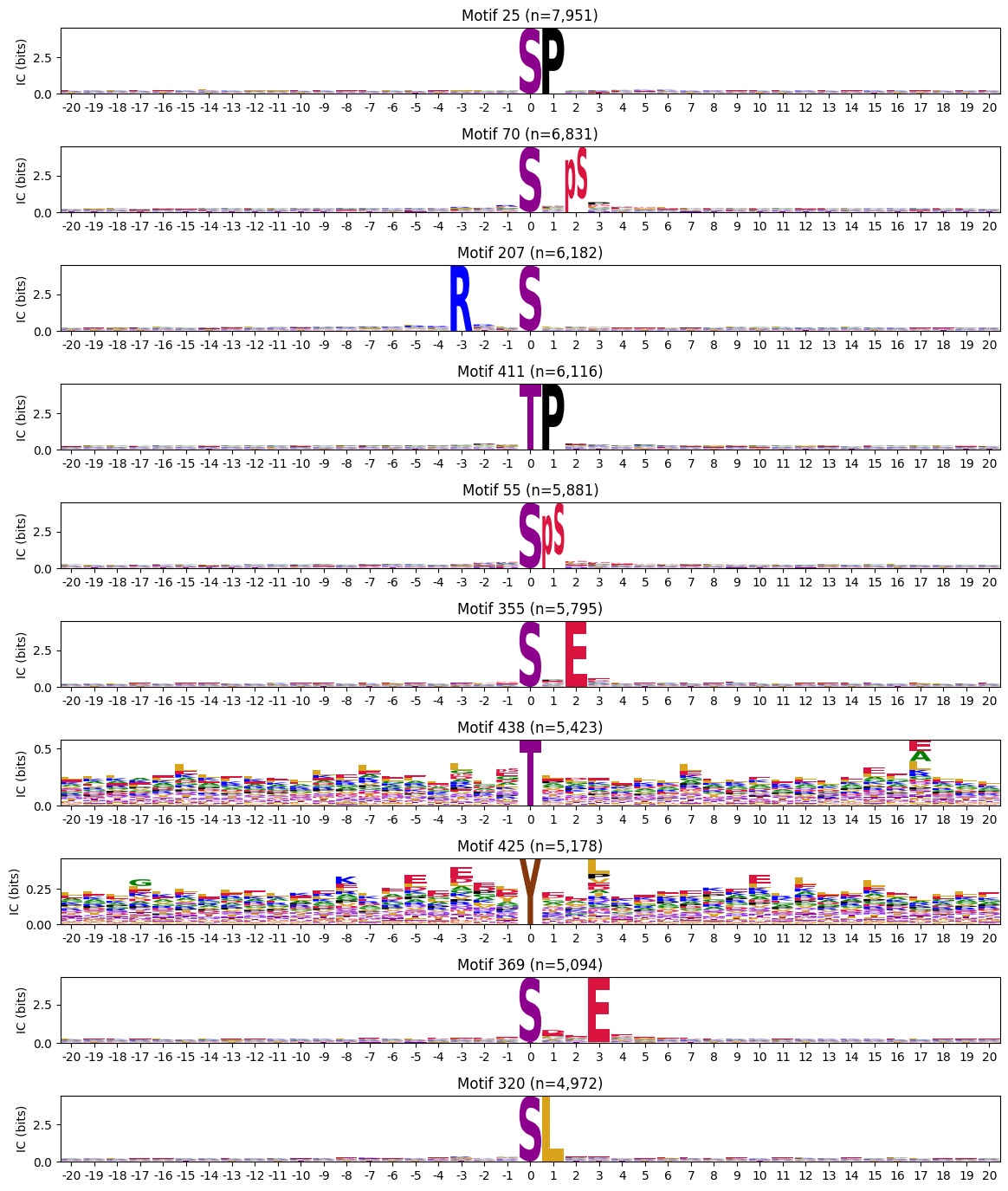

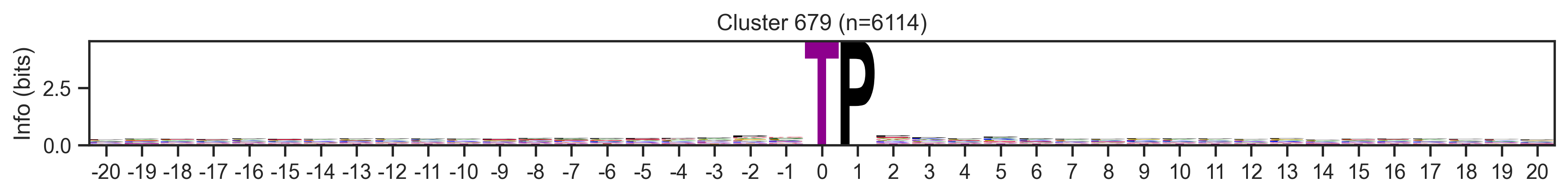

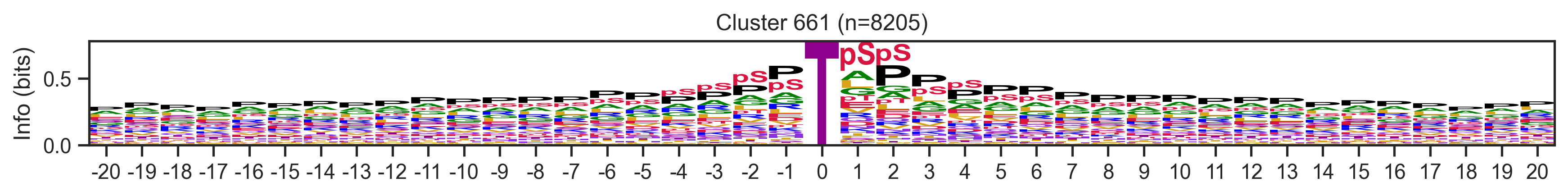

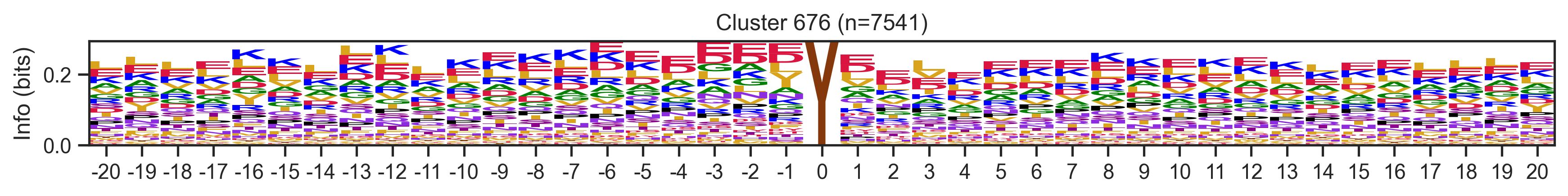

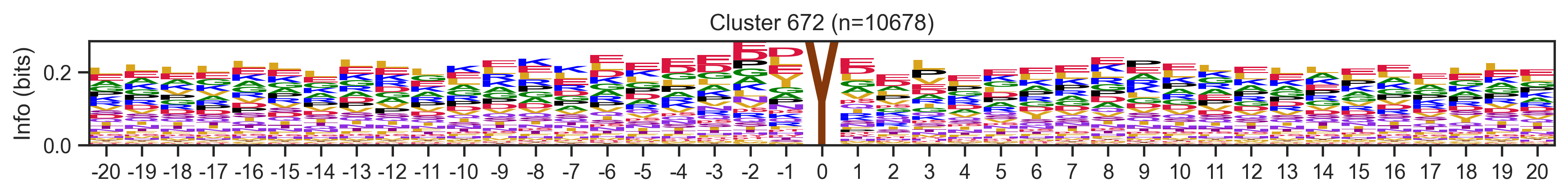

Most common

cluster_cnt = all_site_onehot.sum()

# idxs = cluster_cnt.sort_values(ascending=False).head(10).index
# idxs

cddm=pd.read_parquet('out/CDDM_pssms.parquet')

cddm = preprocess_ref(cddm)

cddm['2s'].sort_values()

index
Q9NYV4_CDK12      0.020833
O00444_PLK4       0.024390
Q9H2G2_SLK        0.027397
O43683_BUB1       0.030000
O43293_DAPK3      0.033333
                    ...
Q9UK32_RPS6KA6    0.226829
P51812_RPS6KA3    0.229333
P23443_RPS6KB1    0.242268
Q96RG2_PASK       0.250000
Q9UBS0_RPS6KB2    0.284916
Name: 2s, Length: 335, dtype: float64

cddm['-3s'].sort_values()

index
O43293_DAPK3      0.000000
P22612_PRKACG     0.013889
P19525_EIF2AK2    0.018182
P35626_GRK3       0.019608
P52564_MAP2K6     0.022222
                    ...
Q15835_GRK1       0.163043
P49674_CSNK1E     0.170792
P48729_CSNK1A1    0.182965
Q99640_PKMYT1     0.215686
Q99986_VRK1       0.220000
Name: -3s, Length: 335, dtype: float64

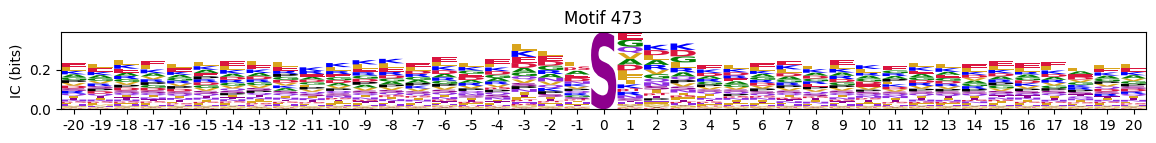

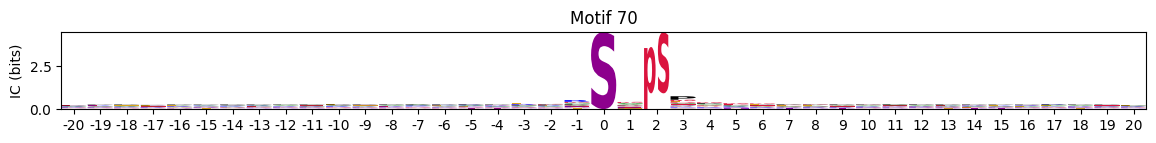

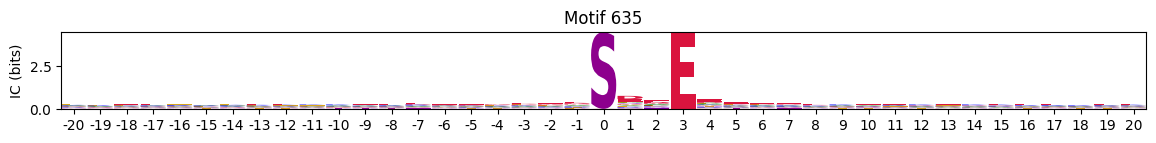

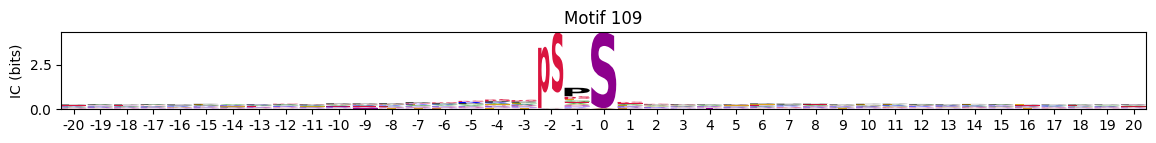

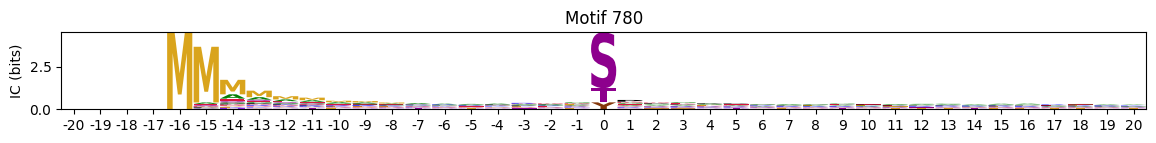

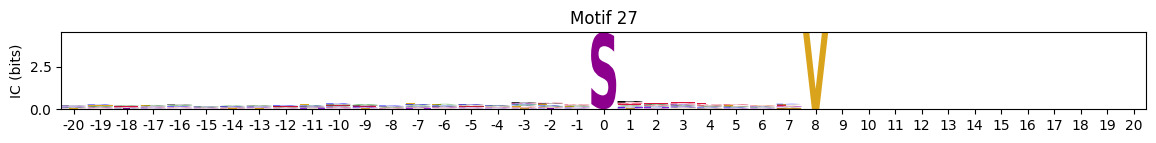

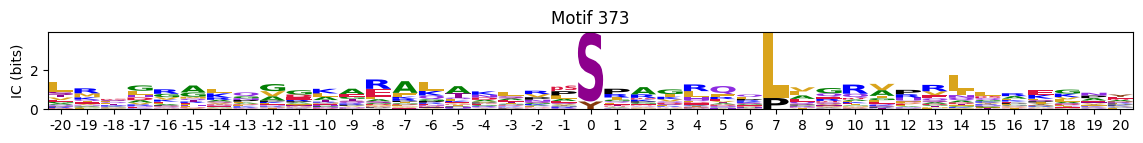

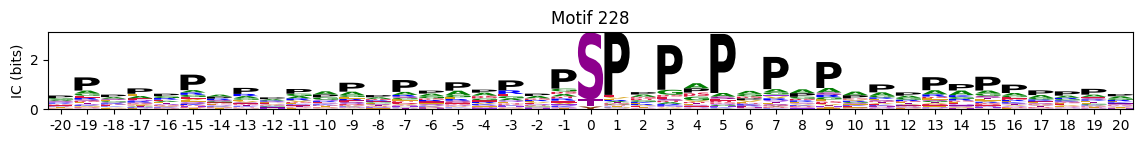

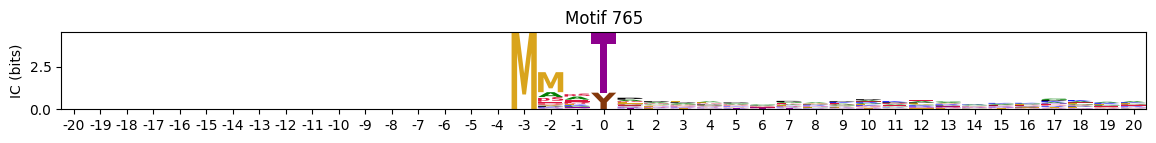

plot_logos(pssms2.head(10),count_dict=cluster_cnt)

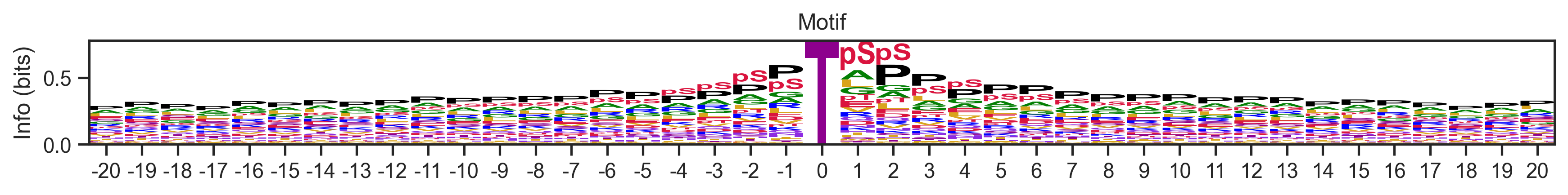

Most common y

pssms_y = pssms2[pssms2['0pY']>0.3].copy()

idxs_y = pssms_y.index

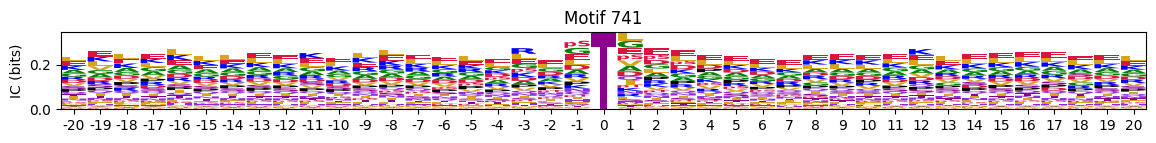

plot_logos(pssms2.loc[idxs_y],count_dict=cluster_cnt)

Highest IC sum

ICs = pssms2.apply(lambda r: sum(get_IC_flat(r)) ,axis=1)

idxs=ICs.sort_values(ascending=False).head(20).index

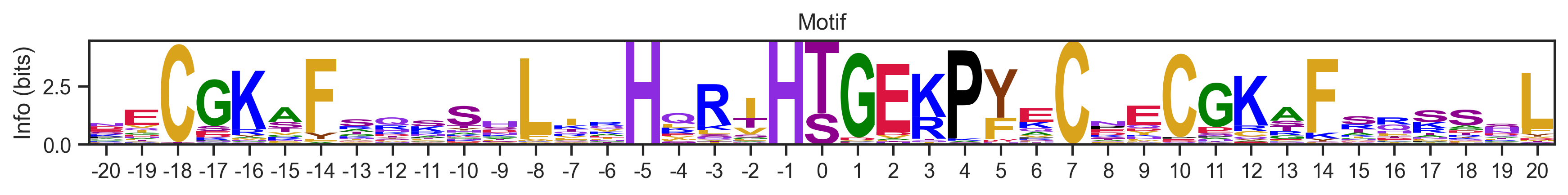

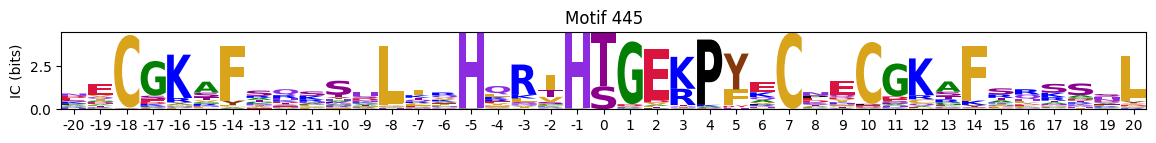

The first one is mostly Zinc finger protein

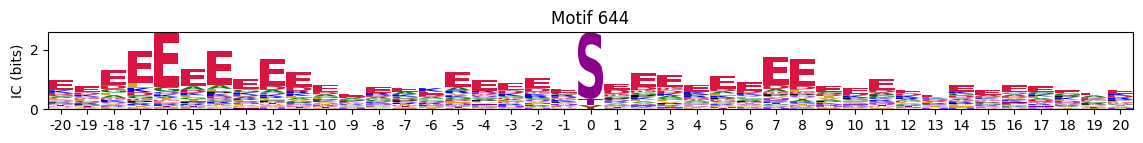

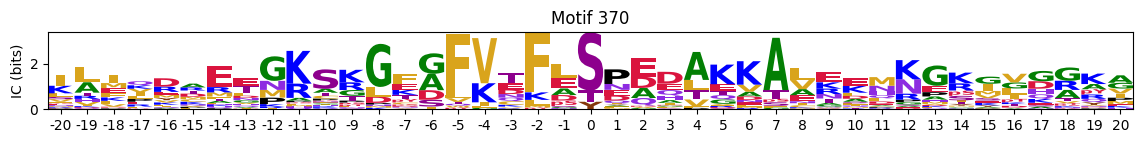

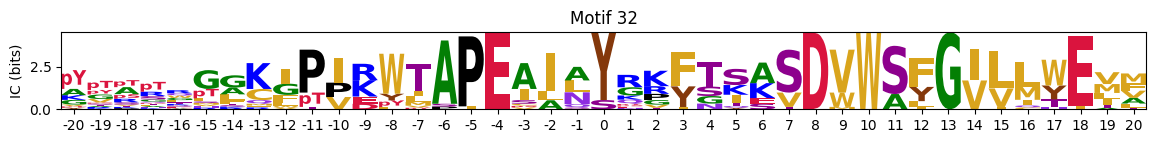

plot_logos(pssms2.loc[idxs],count_dict=cluster_cnt)

C-terminal motifs

zeros_right = pssms2.apply(lambda r: (recover_pssm(r).loc[:,1:].sum()==0).sum() , axis=1)

zeros_right_idxs = zeros_right[zeros_right>0].index

zeros_right_idxs

Index([288, 399, 397, 400, 398, 401], dtype='int64')

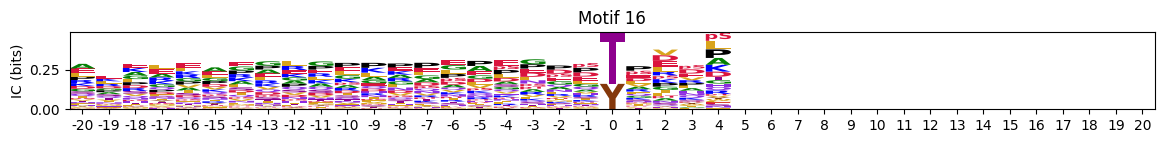

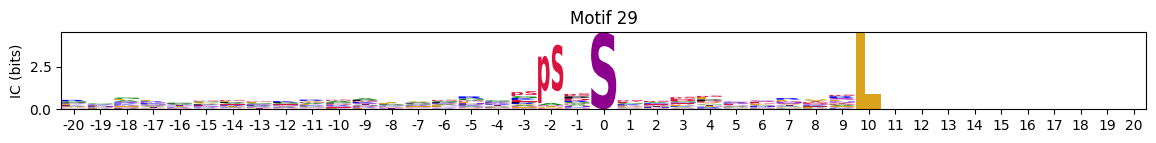

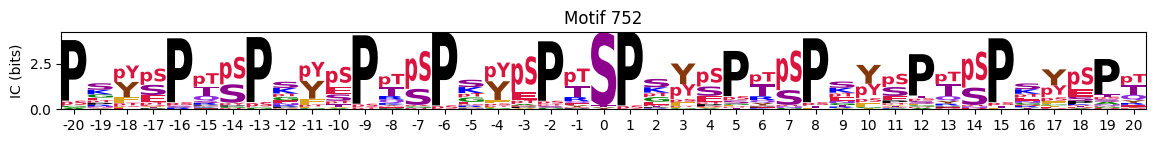

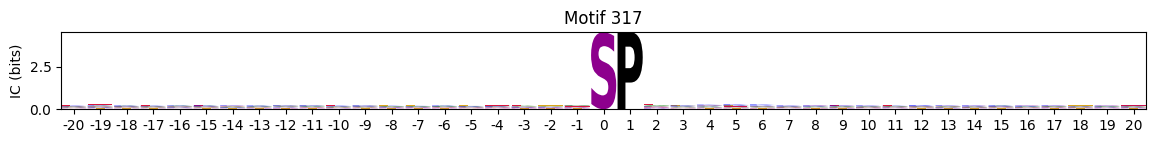

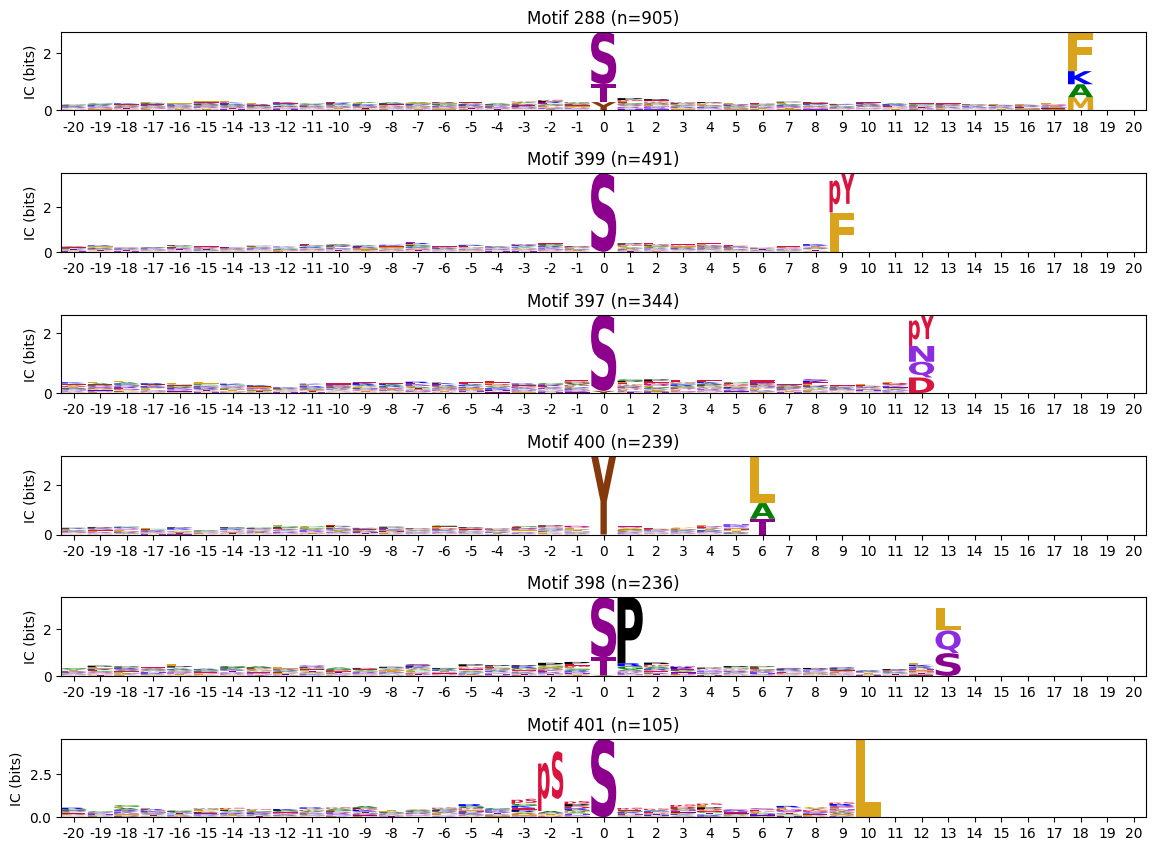

plot_logos(pssms2.loc[zeros_right_idxs],count_dict=cluster_cnt)

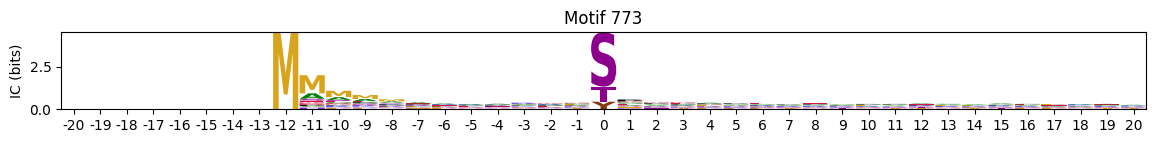

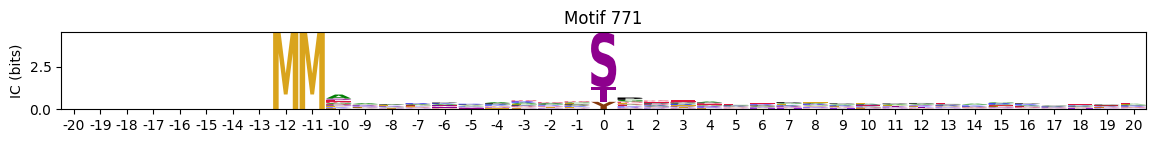

N-Terminal motifs:

zeros_left = pssms2.apply(lambda r: (recover_pssm(r).loc[:,:0].sum()==0).sum() , axis=1)

zeros_left_idxs = zeros_left[zeros_left>0].index

idxs = zeros_left_idxs[:10]

# zeros = pssms2.apply(lambda r: (recover_pssm(r).sum()==0).sum() , axis=1)

# idxs = zeros.sort_values(ascending=False).head(10).index

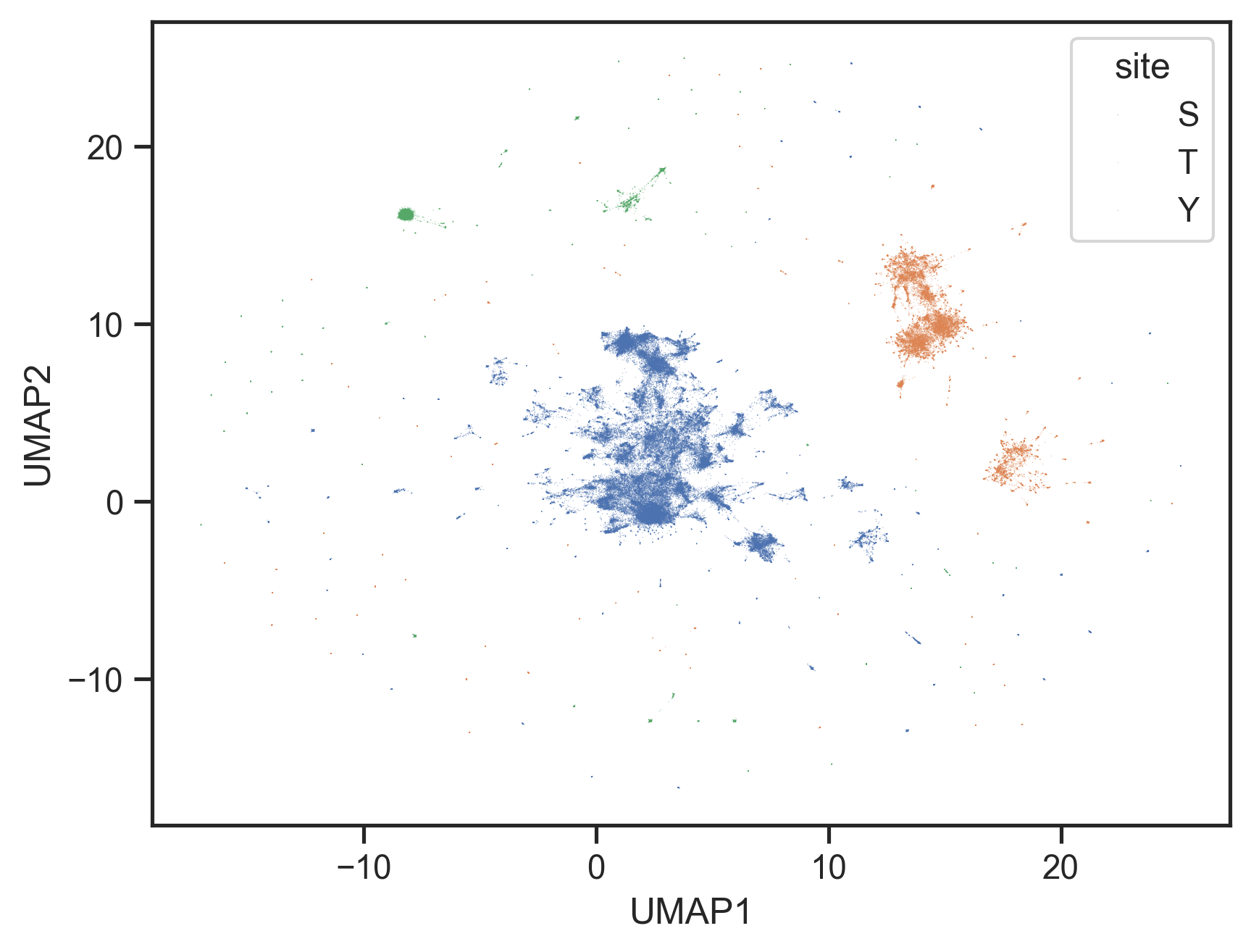

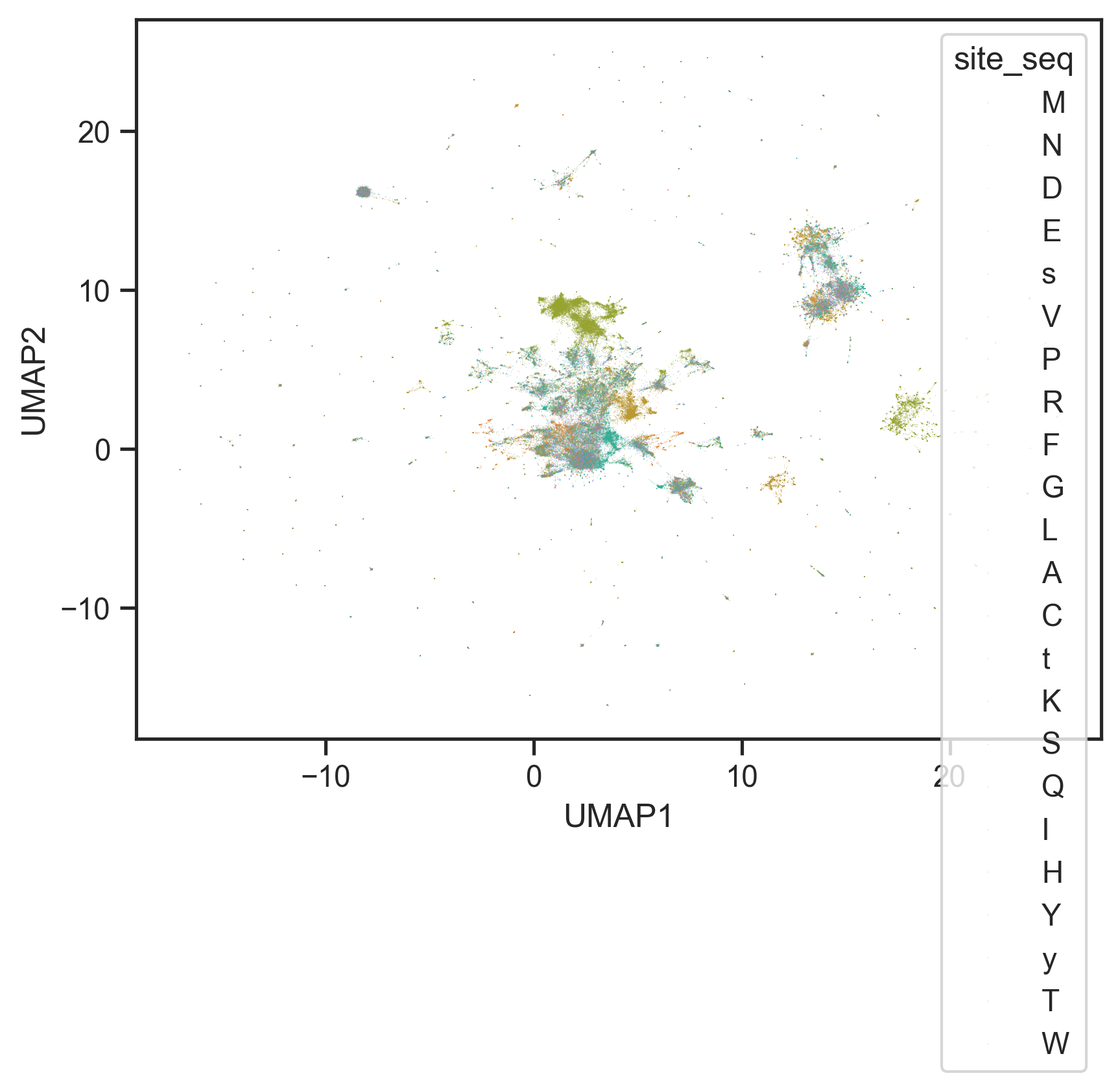

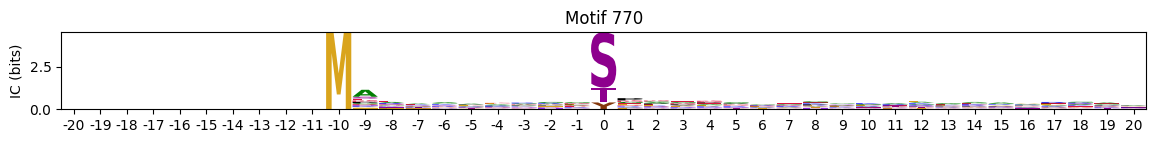

plot_logos(pssms2.loc[idxs],count_dict=cluster_cnt)
