pssm.plot

plot functions of probability pssm

Overview

String Conversion Utilities

To convert between lowercase phosphorylation notation (s/t/y) and formal notation (pS/pT/pY):

pSTY2sty(string='pS-peptide-pT')  # converts pS/pT/pY → s/t/y
sty2pSTY(string='s-peptide-t')    # converts s/t/y → pS/pT/pY
sty2pSTY_df(df=pssm_df)           # applies sty→pSTY to dataframe index

Simple Heatmaps

To plot a basic black-and-white heatmap of PSSM values:

plot_heatmap_simple(
    matrix=pssm_df,      # a matrix of values (positions × amino acids)
    title='kinase',      # title displayed above heatmap
    figsize=(10, 7),     # (width, height) of figure
    cmap='binary',       # colormap, default is black & white
)

Formal Heatmaps

To plot a publication-ready heatmap with diverging colors centered at zero:

plot_heatmap(
    heatmap_df=pssm_df,       # PSSM dataframe (positions × amino acids)
    ax=None,                  # optional matplotlib axes
    position_label=True,      # show position numbers on x-axis
    figsize=(20, 6),          # (width, height) of figure
    include_zero=True,        # whether to show position 0
    scale_pos_neg=False,      # use TwoSlopeNorm for balanced pos/neg scaling
    colorbar_title='Prob.',   # title for the colorbar
)

Comparative Heatmaps

To plot two heatmaps side-by-side for comparing kinase motifs:

plot_two_heatmaps(
    pssm1=pssm_df1,           # first PSSM dataframe
    pssm2=pssm_df2,           # second PSSM dataframe
    kinase_name='AKT',        # shared title above both plots
    title1='CDDM',            # title for left heatmap
    title2='PSPA',            # title for right heatmap
    figsize=(4, 4.5),         # (width, height) of figure
    cbar=True,                # show colorbars below each heatmap
    scale_01=False,           # force color scale to [0, 1] range
)

Logo Motifs

To plot a raw sequence logo from a PSSM:

plot_logo_raw(
    pssm_df=pssm_df,      # PSSM dataframe (positions × amino acids)
    ax=None,              # optional matplotlib axes
    title='Motif',        # title above the logo
    ytitle='Bits',        # y-axis label
    figsize=(10, 2),      # (width, height) of figure
)

To plot an information-content-scaled logo (recommended):

plot_logo(
    pssm_df=pssm_df,      # frequency PSSM dataframe
    title='Motif',        # title above the logo
    scale_zero=True,      # scale position 0 to match neighbor heights
    ax=None,              # optional matplotlib axes
    figsize=(10, 1),      # (width, height) of figure
)

Multiple Logos

To plot logos for specific kinases by index:

plot_logos_idx(
    pssms_df=pssms,       # dataframe with flattened PSSMs (kinases as rows)
    'AKT1', 'AKT2',       # kinase IDs to plot (as positional args)
    figsize=(14, 1),      # (width, height) per logo
)

To plot multiple logos as subplots in one figure:

plot_logos(
    pssms_df=pssms.head(2),   # dataframe with flattened PSSMs
    count_dict=None,          # optional dict mapping idx → count for titles
    path=None,                # optional save path
    prefix='Motif',           # prefix for subplot titles
    figsize=(14, 1),          # (width, height) per logo
)

Combined Logo + Heatmap

To plot a logo motif above its corresponding heatmap:

plot_logo_heatmap(
    pssm_df=pssm_df,      # PSSM dataframe (positions × amino acids)
    title='Kinase',       # title above the logo
    figsize=(17, 10),     # (width, height) of combined figure
    include_zero=False,   # whether to include position 0 in heatmap
)

Setup

# Load data for testing
from katlas.data import *
from katlas.utils import *
from katlas.pssm.core import *
df=Data.get_cddm()
pssm_df = recover_pssm(df.loc['AKT1'])

Heatmap

Black-white simple

plot_heatmap_simple


def plot_heatmap_simple(
    matrix, # a matrix of values
    title:str='heatmap', # title of the heatmap
    figsize:tuple=(6, 7), # (width, height)
    cmap:str='binary', # color map, default is dark&white
    vmin:NoneType=None, vmax:NoneType=None, center:NoneType=None, robust:bool=False, annot:NoneType=None,
    fmt:str='.2g', annot_kws:NoneType=None, linewidths:int=0, linecolor:str='white', cbar:bool=True,
    cbar_kws:NoneType=None, cbar_ax:NoneType=None, square:bool=False, xticklabels:str='auto', yticklabels:str='auto',
    mask:NoneType=None, ax:NoneType=None
):

Plot heatmap based on a matrix of values

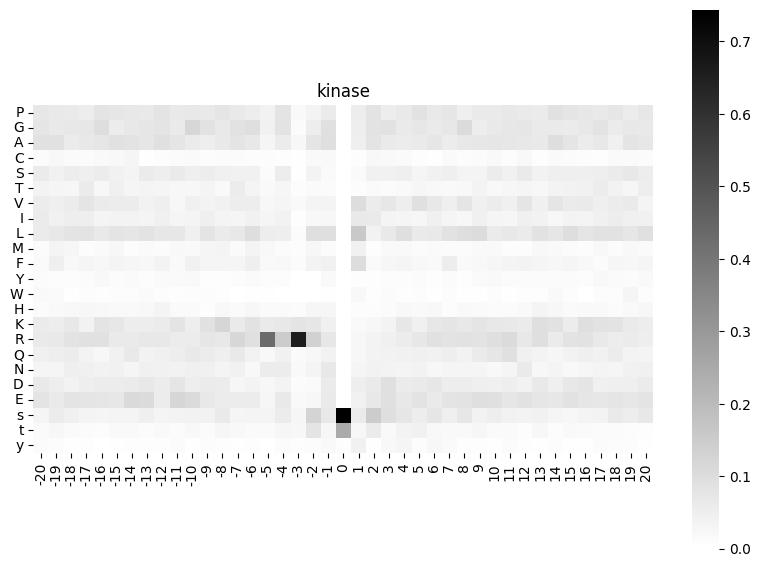

plot_heatmap_simple(pssm_df,'kinase',figsize=(10,7))

Formal

It will convert s,t,y to pS,pT,pY in the heatmap.

pSTY2sty


def pSTY2sty(
    string
):

Convert pS/pT/pY to s/t/y in a string.

sty2pSTY


def sty2pSTY(
    string
):

Convert s/t/y to pS/pT/pY in a string.

sty2pSTY_df


def sty2pSTY_df(
    df
):

Applies sty→pSTY to dataframe index

plot_heatmap


def plot_heatmap(
    heatmap_df, ax:NoneType=None, position_label:bool=True, figsize:tuple=(5, 6), include_zero:bool=True,
    scale_pos_neg:bool=False, colorbar_title:str='Prob.', vmin:NoneType=None, vmax:NoneType=None, cmap:NoneType=None,
    center:NoneType=None, robust:bool=False, annot:NoneType=None, fmt:str='.2g', annot_kws:NoneType=None,
    linewidths:int=0, linecolor:str='white', cbar:bool=True, cbar_kws:NoneType=None, cbar_ax:NoneType=None,
    square:bool=False, xticklabels:str='auto', yticklabels:str='auto', mask:NoneType=None
):

Plot a heatmap of pssm.

This function visualizes a PSSM or log-odds matrix as a heatmap with diverging color scales centered at 0.

Color scale behavior:

  • By default (scale_pos_neg=False), the colormap is centered at 0, but the full data range determines the color intensity:

    \[ \text{color range} = [\min(\text{data}), \max(\text{data})], \quad \text{with center at } 0 \]

    This is useful when you want to emphasize whether values are above or below zero, but without enforcing symmetry.

  • If scale_pos_neg=True, the function uses a balanced diverging scale via TwoSlopeNorm, such that:

    \[ \text{min color} = \min(\text{data}), \quad \text{center} = 0, \quad \text{max color} = \max(\text{data}) \]

    The positive and negative ranges are scaled separately, ensuring that both ends of the heatmap have equal visual weight — especially helpful for symmetric data like log-odds matrices.

Additional visual features: - The center position (\(i = 0\)) can be masked out using include_zero=False.

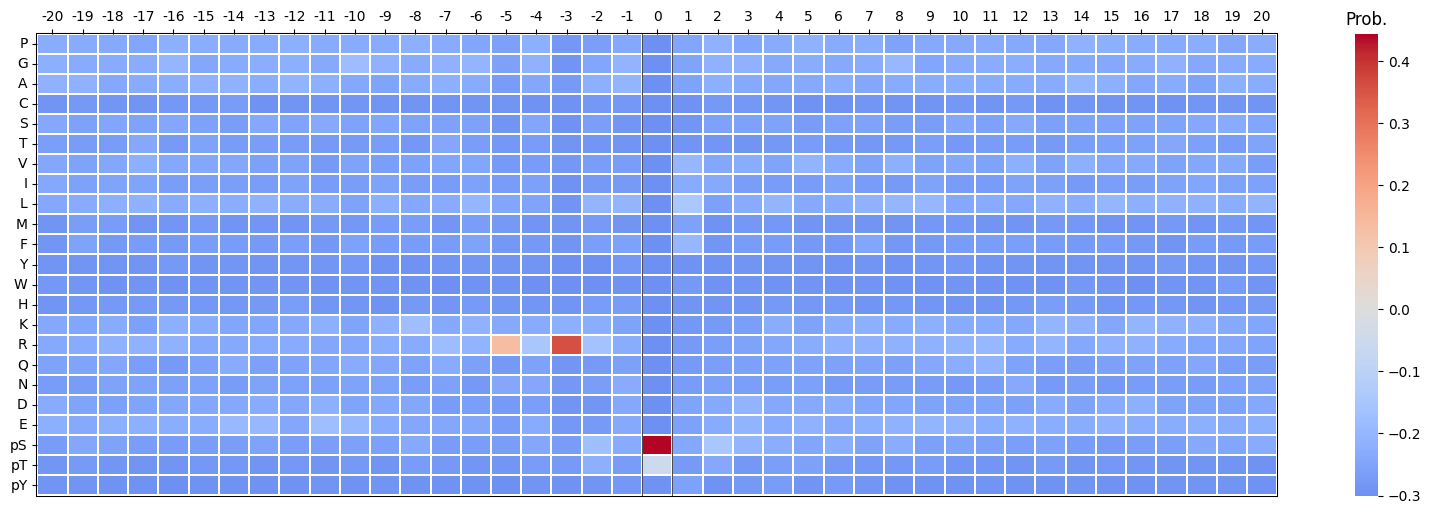

plot_heatmap(pssm_df-0.3,scale_pos_neg=False,figsize=(20, 6));

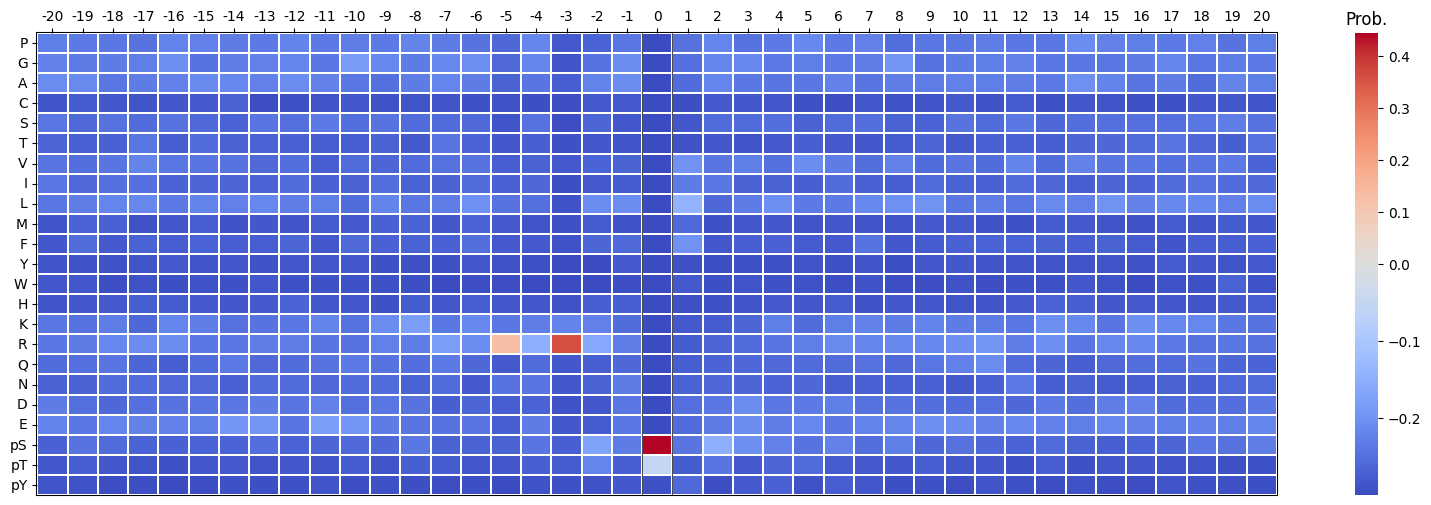

plot_heatmap(pssm_df-0.3,scale_pos_neg=True,figsize=(20, 6));

plt.close('all')

Two heatmaps comparison

plot_two_heatmaps


def plot_two_heatmaps(
    pssm1, pssm2, kinase_name:str='Kinase', title1:str='CDDM', title2:str='PSPA', figsize:tuple=(4, 4.5),
    cbar:bool=True, scale_01:bool=False, cbar_fontsize:int=10, kwargs:VAR_KEYWORD
):

Plot two side-by-side heatmaps with black rectangle borders, titles on top, shared kinase label below, and only left plot showing y-axis labels.

pssm_df2 = pssm_df.loc[:,-5:5]

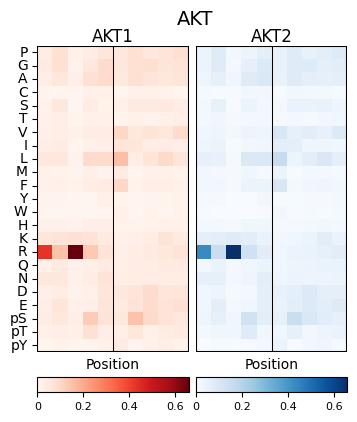

plot_two_heatmaps(pssm_df2,pssm_df2,'AKT','AKT1','AKT2')

Logo motif

To distinguish sty from STY, sty (lowercase) in the input df are automatically converted to pS,pT,pY in logo motif.

plot_logo_raw


def plot_logo_raw(
    pssm_df, ax:NoneType=None, title:str='Motif', ytitle:str='Bits', figsize:tuple=(10, 2)
):

Plot logo motif using Logomaker.

plot_logo_raw(pssm_df)

We can find the center name is in lower case, so need to change them

change_center_name


def change_center_name(
    df
):

Transfer the middle s,t,y to S,T,Y for plot if s,t,y have values; otherwise keep the original.

Now instead of s,t,y, the center name becomes S, T and Y:

change_center_name(pssm_df)[0]
aa
P    0.000000
G    0.000000
A    0.000000
C    0.000000
S    0.744152
T    0.248538
V    0.000000
I    0.000000
L    0.000000
M    0.000000
F    0.000000
Y    0.007310
W    0.000000
H    0.000000
K    0.000000
R    0.000000
Q    0.000000
N    0.000000
D    0.000000
E    0.000000
s    0.000000
t    0.000000
y    0.000000
Name: 0, dtype: float64

get_pos_min_max


def get_pos_min_max(
    pssm_df
):

Get min and max value of sum of positive and negative values across each position.

scale_zero_position


def scale_zero_position(
    pssm_df
):

Scale position 0 so that: - Positive values match the max positive column sum of other positions - Negative values match the min (most negative) column sum of other positions

This function rescales position 0 in a log-odds PSSM so that its total positive and negative stack heights match those of the most extreme positions on either side.

This ensures the central position visually matches the dynamic range of surrounding positions in log-odds logo plots.

scale_pos_neg_values


def scale_pos_neg_values(
    pssm_df
):

Globally scale all positive values by max positive column sum, and negative values by min negative column sum (preserving sign).

convert_logo_df


def convert_logo_df(
    pssm_df, scale_zero:bool=True, scale_pos_neg:bool=False
):

Change center name from s,t,y to S, T, Y in a pssm and scaled zero position to the max of neigbors.

get_logo_IC


def get_logo_IC(
    pssm_df
):

For plotting purpose, calculate the scaled information content (bits) from a frequency matrix, using log2(3) for the middle position and log2(len(pssm_df)) for others.

To visualize the motif using Logomaker, the scaled PSSM is computed by weighting each amino acid’s frequency at position \(i\) by the position’s information content:

\[ \text{PSSM\_scaled}_i(x) = P_i(x) \cdot \mathrm{IC}_i \]

This results in a matrix where the total stack height at each position equals the information content, and each letter’s height is proportional to its contribution. This is the standard format used by Logomaker to generate sequence logos.

get_logo_IC(pssm_df)
Position -20 -19 -18 -17 -16 -15 -14 -13 -12 -11 ... 11 12 13 14 15 16 17 18 19 20
aa
P 0.019253 0.011378 0.016632 0.014723 0.027341 0.017469 0.018061 0.020054 0.018999 0.021432 ... 0.022264 0.016570 0.017585 0.025658 0.024024 0.024794 0.016453 0.018620 0.011564 0.017775
G 0.020457 0.011642 0.018254 0.019222 0.033016 0.012927 0.018462 0.023318 0.019358 0.020458 ... 0.023748 0.019803 0.018025 0.017396 0.018739 0.023716 0.020762 0.014741 0.014455 0.016590
A 0.023666 0.015347 0.015820 0.018404 0.025278 0.020613 0.022074 0.022852 0.021867 0.025329 ... 0.023748 0.018186 0.018904 0.027833 0.024505 0.019943 0.017237 0.011637 0.016383 0.018170
C 0.003209 0.003704 0.004462 0.003272 0.006191 0.004891 0.008428 0.000933 0.002151 0.003897 ... 0.003463 0.005658 0.002198 0.004349 0.003844 0.003234 0.001959 0.003879 0.003212 0.003160
S 0.016044 0.007144 0.014198 0.012678 0.019087 0.009782 0.008830 0.018188 0.012188 0.020945 ... 0.013853 0.016570 0.011431 0.013916 0.015376 0.017248 0.012928 0.014741 0.014134 0.013430
T 0.009627 0.005292 0.007707 0.016359 0.008254 0.010830 0.008428 0.010726 0.007170 0.008281 ... 0.009400 0.008083 0.007474 0.010437 0.012012 0.015092 0.014495 0.009698 0.005782 0.013035
V 0.015242 0.008467 0.015415 0.021267 0.020635 0.013276 0.014850 0.012592 0.011471 0.007793 ... 0.014843 0.020611 0.013189 0.021744 0.018258 0.022099 0.012536 0.014353 0.013170 0.008690
I 0.015643 0.007144 0.013792 0.013496 0.011865 0.008734 0.010034 0.010260 0.011113 0.009742 ... 0.009400 0.011720 0.011431 0.006958 0.011532 0.011858 0.011752 0.013189 0.009637 0.010665
L 0.016044 0.012171 0.021905 0.022494 0.022183 0.018517 0.020067 0.026116 0.016848 0.023867 ... 0.022759 0.016166 0.025059 0.020875 0.030751 0.026950 0.021546 0.021335 0.015098 0.022910
M 0.003209 0.006086 0.007707 0.002863 0.005159 0.005590 0.002809 0.005130 0.003226 0.007306 ... 0.003463 0.002425 0.006155 0.005654 0.004324 0.003773 0.005876 0.003491 0.004818 0.004345
F 0.004412 0.008202 0.005679 0.008589 0.008254 0.007686 0.007224 0.007462 0.008962 0.005845 ... 0.010885 0.009295 0.008793 0.007393 0.009610 0.007546 0.003526 0.006594 0.005140 0.007505
Y 0.003209 0.001852 0.002840 0.003272 0.007222 0.002795 0.004013 0.003265 0.003943 0.004871 ... 0.004453 0.003637 0.003517 0.003479 0.003844 0.003773 0.005484 0.004267 0.002570 0.005135
W 0.004813 0.002646 0.001217 0.002863 0.002064 0.002446 0.002408 0.004664 0.002151 0.002435 ... 0.001484 0.002021 0.002198 0.005219 0.003363 0.000539 0.002742 0.002327 0.006425 0.002765
H 0.003610 0.003175 0.005679 0.006544 0.007738 0.004542 0.004816 0.006529 0.008245 0.005358 ... 0.003958 0.005254 0.009672 0.006958 0.005285 0.007007 0.004701 0.003491 0.004176 0.006320
K 0.015643 0.009261 0.018660 0.010633 0.027857 0.016420 0.014449 0.017255 0.014339 0.025816 ... 0.021769 0.015762 0.027257 0.024354 0.017778 0.033418 0.021546 0.020947 0.012849 0.013825
R 0.016446 0.011642 0.022311 0.024539 0.030953 0.014324 0.016857 0.021453 0.016490 0.018996 ... 0.035127 0.018186 0.027257 0.016961 0.025946 0.030184 0.016453 0.013577 0.012207 0.013035
Q 0.012033 0.008996 0.015415 0.009815 0.008770 0.010132 0.017258 0.012592 0.010754 0.018022 ... 0.029685 0.011720 0.010551 0.007828 0.012493 0.016709 0.010969 0.013965 0.007709 0.008295
N 0.008423 0.005557 0.012575 0.012269 0.013929 0.009782 0.008027 0.013991 0.010396 0.013151 ... 0.009895 0.016974 0.007474 0.009133 0.006727 0.009702 0.008227 0.007370 0.008673 0.011060
D 0.017649 0.008996 0.010547 0.013496 0.019087 0.013276 0.016054 0.020986 0.013622 0.025329 ... 0.016327 0.010508 0.018465 0.013916 0.021622 0.026950 0.011361 0.012025 0.009958 0.015405
E 0.020858 0.010848 0.021905 0.020858 0.025794 0.016770 0.028897 0.033578 0.013622 0.039941 ... 0.024738 0.023036 0.021103 0.020440 0.026907 0.026411 0.018020 0.019395 0.014776 0.020145
s 0.008022 0.009790 0.011764 0.009407 0.010318 0.008036 0.009231 0.014924 0.008245 0.012177 ... 0.012864 0.009295 0.012310 0.008698 0.008168 0.011858 0.009010 0.015904 0.010922 0.017380
t 0.004412 0.004234 0.004057 0.003681 0.003095 0.004192 0.005218 0.003731 0.004302 0.003897 ... 0.004948 0.002425 0.007034 0.002609 0.005766 0.005390 0.003526 0.003491 0.001927 0.001975
y 0.003209 0.001852 0.000811 0.001636 0.000000 0.000699 0.002007 0.001865 0.001792 0.003897 ... 0.004453 0.002021 0.001319 0.003044 0.001441 0.001617 0.003134 0.002327 0.001927 0.001185

23 rows × 41 columns

Multiple logos

As multiple figures:

plot_logos_idx


def plot_logos_idx(
    pssms_df, idxs:VAR_POSITIONAL, figsize:tuple=(14, 1)
):

Plot logos of a dataframe with flattened PSSMs with index ad IDs.

pssms=Data.get_cddm()

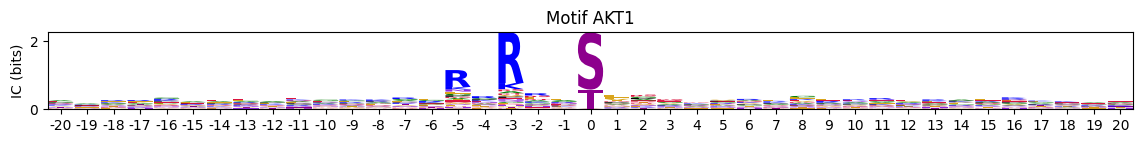

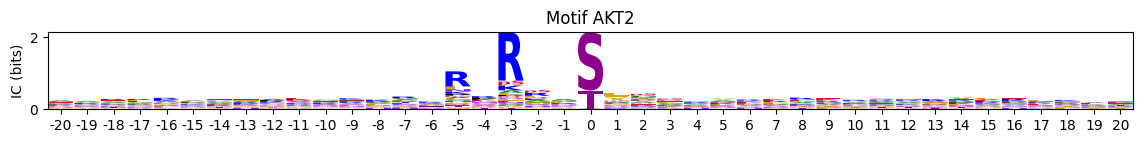

plot_logos_idx(pssms,'AKT1','AKT2')

In one figure:

plot_logos


def plot_logos(
    pssms_df, count_dict:NoneType=None, # used to display n in motif title
    prefix:str='Motif', figsize:tuple=(14, 1)
):

Plot all logos from a dataframe of flattened PSSMs as subplots in a single figure.

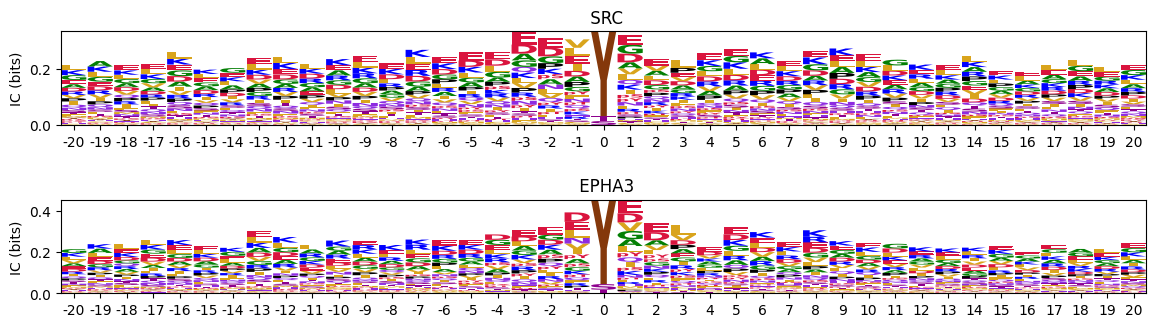

plot_logos(pssms.head(2),prefix=None)

plt.close('all')

Logo motif + Heatmap

plot_logo_heatmap


def plot_logo_heatmap(
    pssm_df, # column is position, index is aa
    title:str='Motif', figsize:tuple=(17, 10), include_zero:bool=False
):

Plot logo and heatmap vertically

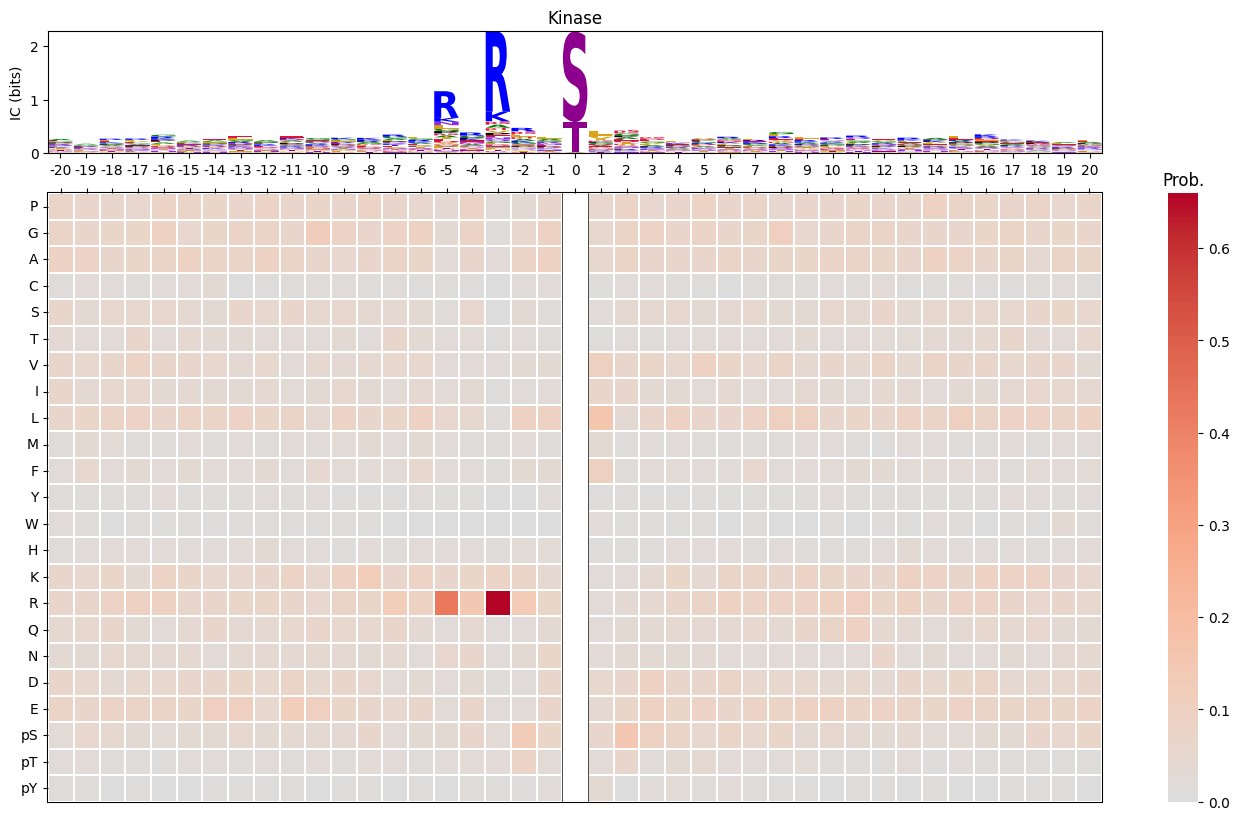

plot_logo_heatmap(pssm_df,title='Kinase',figsize=(17,10))
